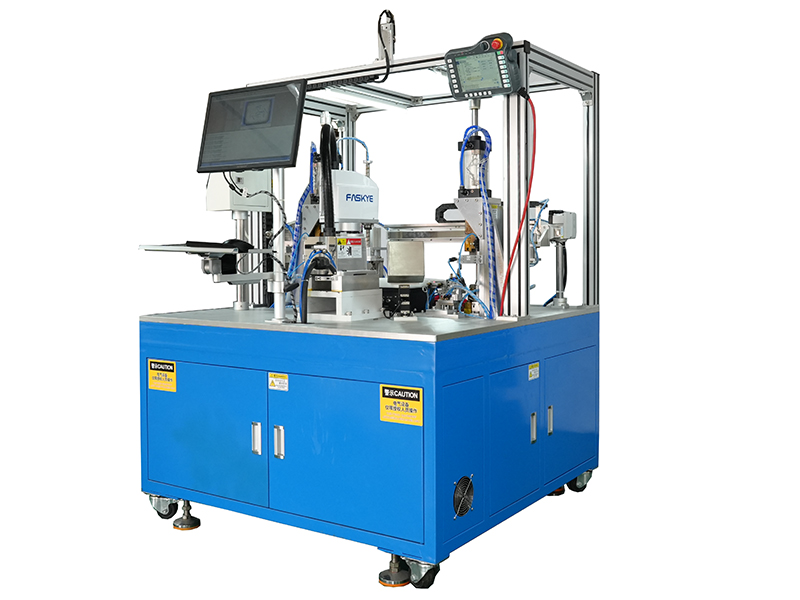

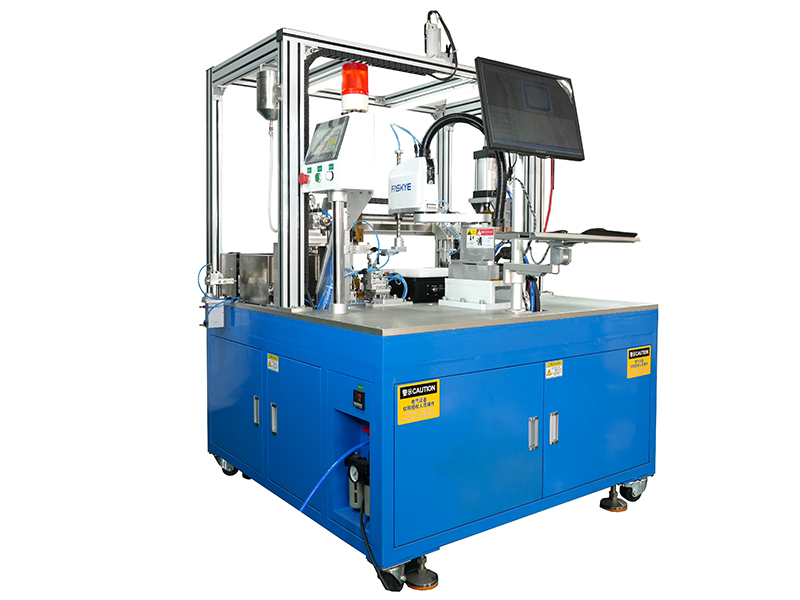

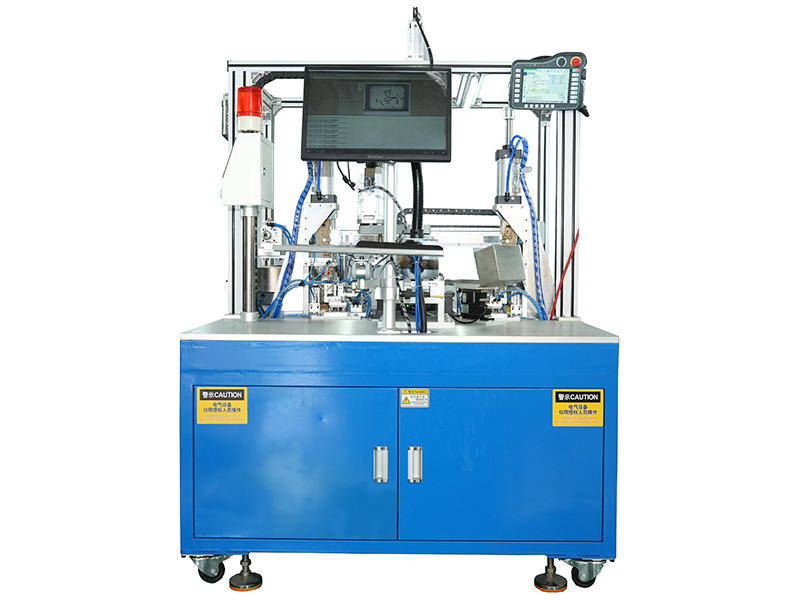

Automatic Acetate Film & Metal Tipping Machine

  • Automatic Acetate Film & Metal Tipping Machine
  • Automatic Acetate Film & Metal Tipping Machine
  • Automatic Acetate Film & Metal Tipping Machine

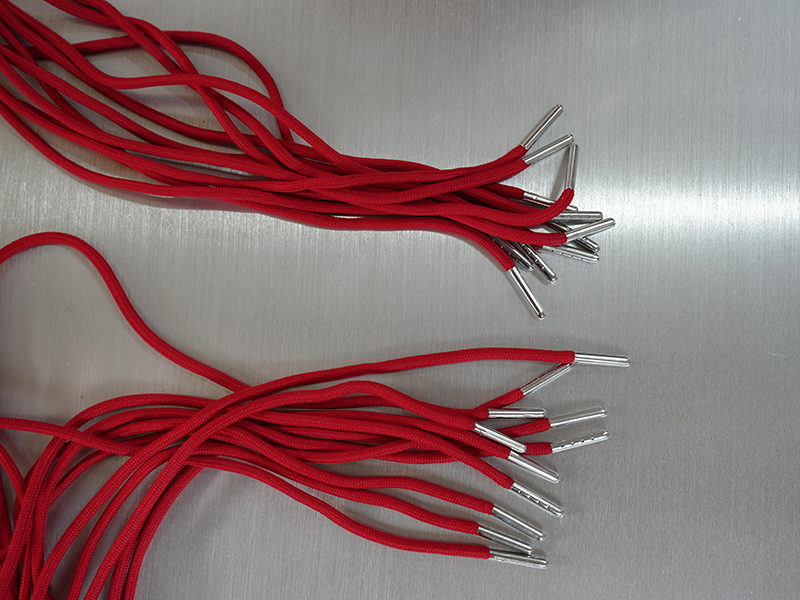

Automatic acetate film & metal aglet tipping machine supports tipping operations for cords with lengths ranging from 1,000 to 5,000 mm. It is suitable for both acetate film and metal aglet tipping. With a production capacity of up to 600 pieces per hour, the machine is equipped with servo and stepper motor systems to ensure stable and efficient performance, making it ideal for large-scale production of shoelaces and various cord products.

Automatic Acetate Film & Metal Tipping Machine
Parameters
Metal tip diameter 3.8 / 4.2 / 5.0 mm
Rope length 1,000–5,000 mm
Power consumption 2 kWh
Efficiency Approx. 600 pcs/h (depending on size and material; longer products reduce speed)
Drive system Motor & pneumatic
Air pressure 0.6 MPa
Machine size 1300 × 1300 × 1800 mm
Machine weight 1000 kg
Motor system Servo motor + stepper motor
Working environment Normal temperature (wind-protected environment)
Machine power 2 kW
Motor power 1.5 kW
Voltage 220V
Inquiry
