Rope Bag Handle Tipping Machine

  • Rope Bag Handle Tipping Machine
  • Rope Bag Handle Tipping Machine

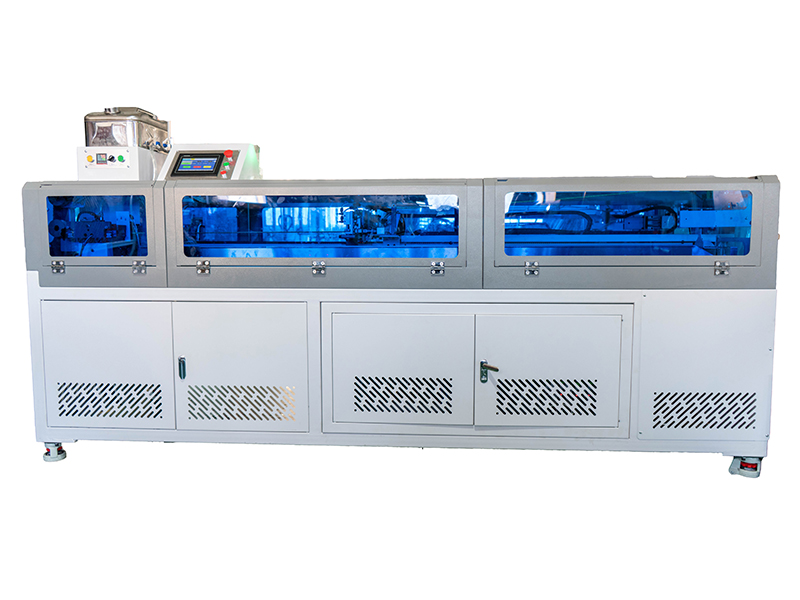

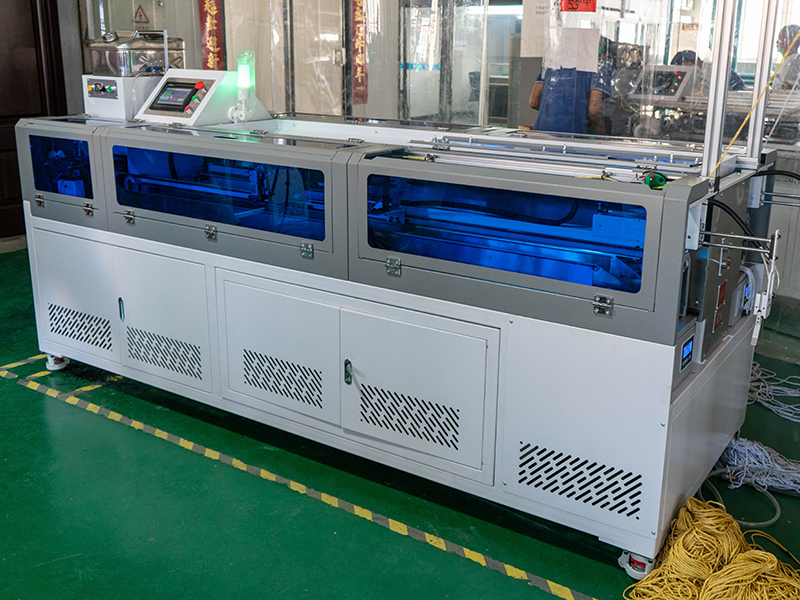

CO DT-700 rope bag handle tipping machine (rope head machine) is specifically designed for forming plastic tips (aglets) on handbag handle cords. It is widely used for paper bag handles, handbag drawcords, and similar products, improving production efficiency and ensuring consistent product quality.

  • Rope Bag Handle Tipping Machine
  • Rope Bag Handle Tipping Machine
Process Flow

Rope conveying → Blunt tip forming mold → Air clamp spacing adjustment → Rope feeding via funnel → Plastic tip forming → Rope pulling and cutting → Counting and bundling

  • Rope Bag Handle Tipping Machine
  • Rope Bag Handle Tipping Machine
  • Rope Bag Handle Tipping Machine
  • Rope Bag Handle Tipping Machine
Parameters
Rope length 50–750 mm
Single-side Speed 0–80 pcs/min
Power 2.5 kW
Dimensions (L×W×H) 2200 × 1050 × 1500 mm
Net weight 700 kg
