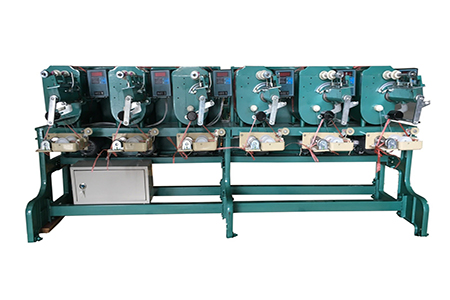

This CO-S6 spindles sewing thread winding machine is common in thread production facilities and adopts individual drive per spindle. It features the functions of automatic length counting and automatic tension adjusting which are simple and extremely practical. The functions of automatic power shut down and auto saving of parameters can guarantee production safety. The machine is ideally suited for operations without high production speed requirements and those on a budget.
Shape of sewing thread | Cone | Column | Horn/bugle | Pineapple |
Size | 4” 5” 6” | 2” | 4” 5” 6” | 4” 5” 6” |
No.of spindles | 6 spindle | 6 spindles | 6 spindles | 6 spindles |
Quantity of each spindle | 2pcs | 4-6pcs | 2pcs | 1pcs |
Thread length | 0-3000m | 0-3000m | 0-3000m | 0-3000m |
Motor | 380V, 50Hz, 3 phase (or as client required) | |||
Machine volume | L2150×W700×H1200 mm | |||
Net weight | 600kgs |
