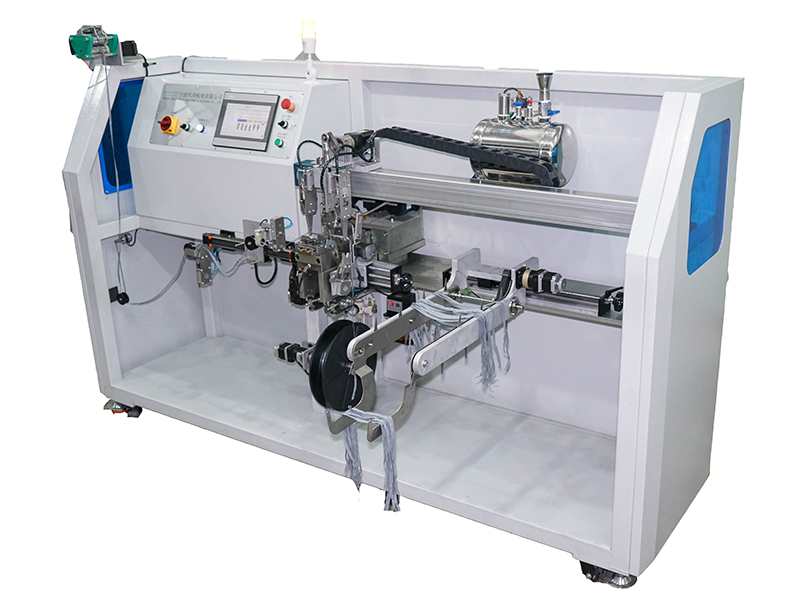

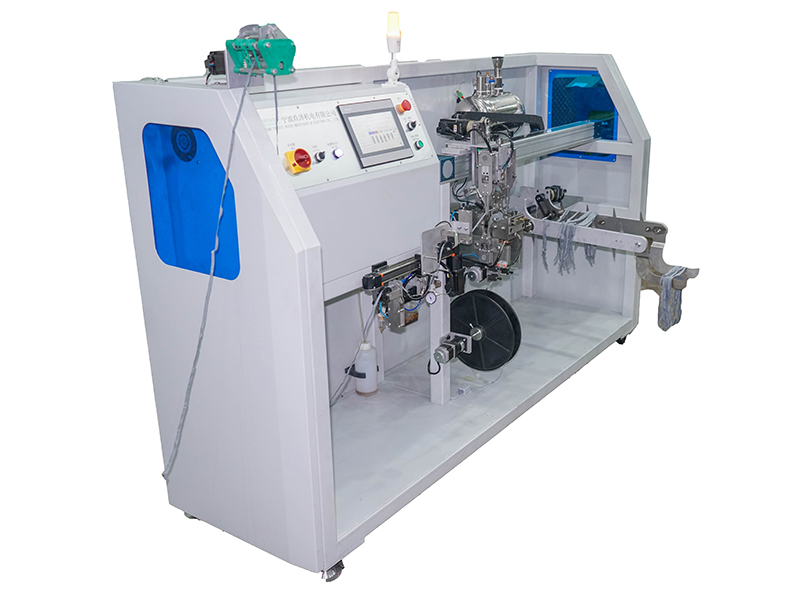

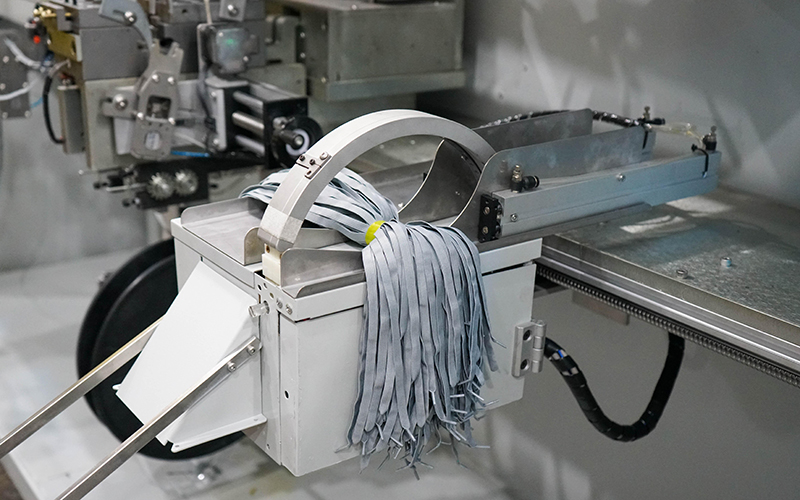

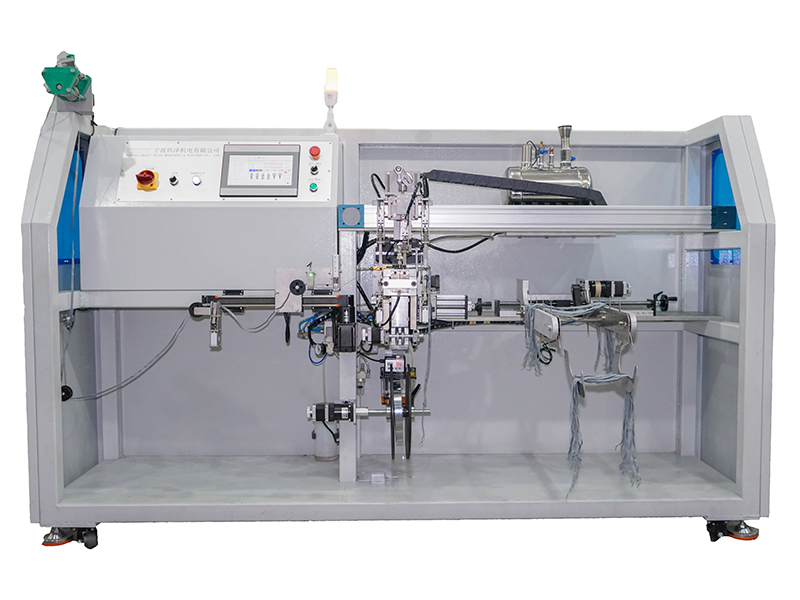

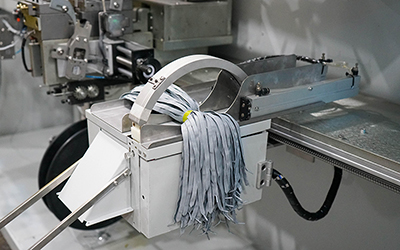

CNC automatic tipping machine features a high-precision CNC control system combined with a servo-controlled feeding system. It supports acetate film tipping and is widely used for waistbands, sock cuffs, elastic straps, and decorative tapes. The machine enables automatic positioning, cold cutting, and one-step tipping, ensuring high efficiency and precision in a single integrated system.
| Model | ||
| Power supply | 1PH 220V 50Hz | 1PH 220V 50Hz |
| Total power | 3 kW | 3 kW |
| Operating power | 0.3 kW | 0.3 kW |
| Output | 1500–1800 pcs/h | 1500–1800 pcs/h |
| Size range | 200–750 mm | 150–1800 mm |
| Function | Automatic stop for rope break, knot, no film, no glue, etc. | |
| Quantity control | Countdown shutdown (up to 10 digits) | |
