CORL Shoelace Tipping Machine

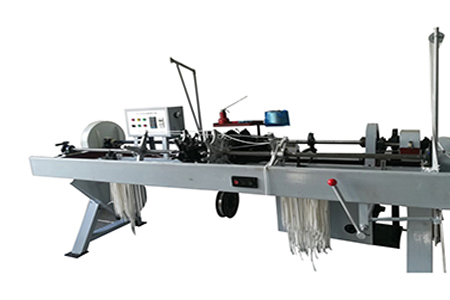

  • CORL Shoelace Tipping MachineCORL fully automatic type

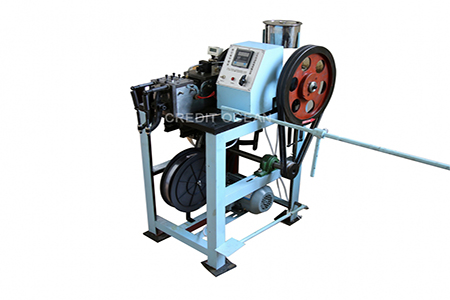

  • CORL Shoelace Tipping MachineCORL semi-automatic type

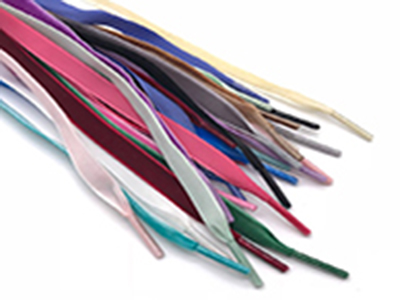

The CORL shoelace tipping machine is used to apply aglets to shoelaces and gift bag lace in a neat and beautiful way. This is an economical and practical machine suitable for customers with small initial investment.

  • CORL Shoelace Tipping Machine

The tipping of shoelace and gift bag lace can be realized in one machine simultaneously only by changing the feeding device. If the acetate film with pattern is to be tipped, an infrared photoelectric protector can be selected to precisely position the acetate film. Meanwhile, if the photocell eye is equipped, the tipping of the shoelace and gift bag lace can be finished without changing the feeding device. The machine is easy to operate and has the functions of PLC counter and anti-punch, thus ensuring safe production.

According to the automation degree and the length of suitable laces, we offer you a variety of machine types to choose from.

Parameters
Model CO-9 CO100 CO150 CO200 CO250
Type Semi-automatic Full-automatic
Min. Length of lace 9cm 40cm 40cm 40cm 40cm
Max. Length of lace Unlimited 100 cm 150 cm 200 cm 250 cm
Output 40 pcs/min 60 pcs/min 60 pcs/min 60 pcs/min 50 pcs/min
Motor 1.5 KW 1.5 KW 1.5 KW 1.5 KW 1.5 KW
Electric heating 40° - 45° 40° - 45° 40° - 45° 40° - 45° 40° - 45°
Machine size 900×650×1070 mm 1910×1330×1620 mm 2500×1400×1660 mm 3120×1400×1660 mm 3500×1400×1660 mm
Machine weight 160 KG 500 KG 600 KG 750 KG 850 KG
Optional attachment Acetate film: 25mm, 30mm, 32mm, 40mm, 50mm etc. 13mm 14mm 15mm 16mm tooth Knife moulds: ¢1.5, ¢1.9, ¢2.1, ¢2.3, ¢2.5, ¢2.8, ¢3.0, ¢3.2, ¢3.5, ¢3.7, ¢4.0, ¢4.2, 4.5, ¢4.8, ¢5.0. Pump
Inquiry
More Knitting Machines
    1. Multi-Head Cord Knitting Machine
    2. Multi-Head Cord Knitting Machine

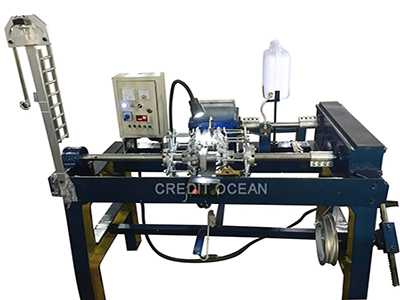

    1. CODK Shoelace Tipping Machine
    2. CODK Shoelace Tipping Machine

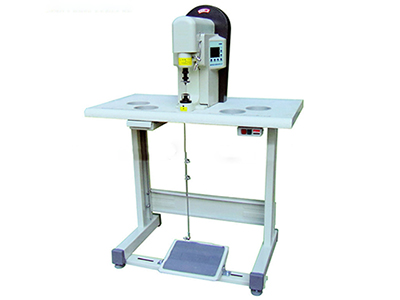

    1. Semi-Automatic Shoelace Tipping Machine for Metal
    2. Semi-Automatic Shoelace Tipping Machine for Metal

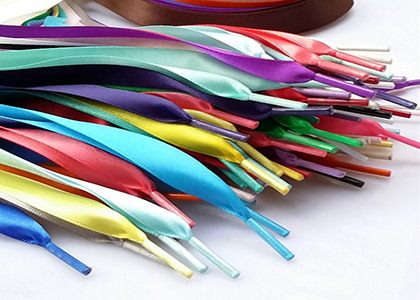

    1. Accessories
