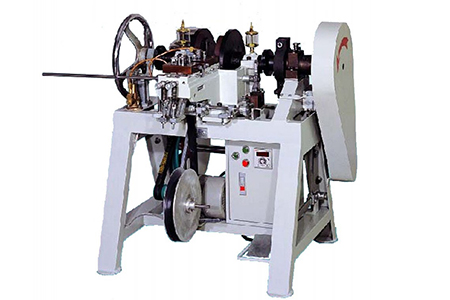

COTW Semi-automatic Shoelace Tipping Machine

COTW Semi-automatic Shoelace Tipping Machine

The COTW semi-automatic shoelace tipping machine is specially designed for tipping the plastic head of shoelaces with a high degree of automation and adaptability.

Features
  • The temperature can be adjusted and controlled automatically to keep constant temperature at the set value, generally within 50℃-60℃.
  • The shoelace tipping machine will automatically stop when there is no acetate film to prevent the machine from idling, thus reducing losses.
  • The main motor has the function of overload protection.
  • The function of phase order protection is available, which can prevent the damage of structural components caused by phase reversal.
  • COTW Semi-automatic Shoelace Tipping Machine
  • COTW Semi-automatic Shoelace Tipping Machine
  • COTW Semi-automatic Shoelace Tipping Machine
Parameters
Model COTW
Capacity 40-80 pcs/min
Motor SIMENS 1HP,4P
Blade diameter (optional) 2.0, 2.2, 2.5, 2.8, 3.0, 3.2, 3.5, 3.8, 4.0, 4.2 mm
Machine dimensions L 1418×W 900×H 980 mm
Net weight 205 kg
Gross weight 300 kg
