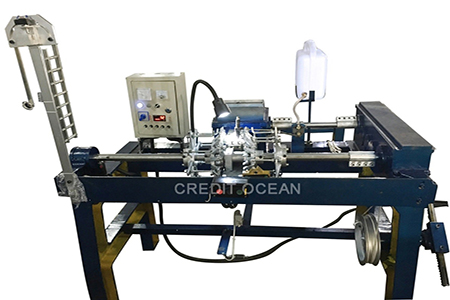

CODK Shoelace Tipping Machine
CODK shoelace tipping machine is used for tipping plastics on shoelaces and gift bag laces. It is simple to use, labor-saving and efficient to produce finished laces with standard size, thus improving the qualification rate of products. This is one of our series with the highest price/performance ratio with a maximum production speed of 4,500pcs/h. More importantly, the CODK series is applicable to laces with the length ranging from 24 cm to 220cm.
According to your special production needs, we offer you different models of semi-automatic and fully automatic machines, the latter of which is optionally equipped with a photocell eye to facilitate the tipping of plastic acetate films with LOGOs or patterns.
| Model | CODF 90-2 | CODF 650 | CODF 650-2 | CODF 1730 | CODF 2530 |
| Size(L*M*D)cm | 85*75*85 | 160*100*145 | 270*110*140 | 370*110*140 | |
| Net Weight | 150KG | 650KG | 750KG | 850KG | |
| Motor Power | Three-Phase 380V/0.75KW | Three-Phase 380V/1.1KW | Three-Phase 380V/1.1KW | Three-Phase 380V/1.1KW | |
| Single-Phase 220V/1.1KW | Single-Phase 220V/1.5KW | Single-Phase 220V/1.5KW | Single-Phase 220V/1.5KW | ||
| Electric Heating Pipe Power | 220V/300W | ||||
| Product Cutting Length | 9 cm of above | No clastic:28-85cm Elastic:26-80cm | Rigid cord:16-85cm | 32-150cm/38-150cm | 32-200cm/38-200cm |
| Blade Diameter(mm) | 6MM thickness blade, Size:1.8,2.0,2.2,2.5,2.8,3.0,3.2,3.5,3.8,4.0,4.2 7MM or 8MM thickness blade, Size:4.2,4.5,4.8,5.0,5.2,5.5 | ||||
| Speed | 2000 PCS/H | 3500-4200 PCS/H | 3500-4200 PCS/H | 3500-4200 PCS/H | |
For the tipping of shoelace, an automatic take-up device can be added.
