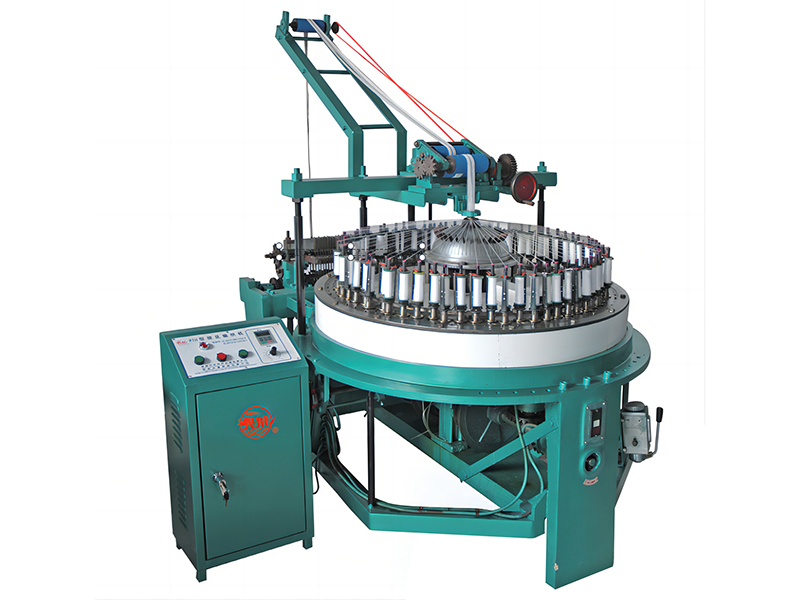

Mechanical Lace Braiding Machine

Mechanical Lace Braiding Machine
Mechanical Lace Braiding Machine Mechanical Lace Braiding Machine
Parameters
  • Superior performance, easy operation, and high safety.
  • It can be used with various weaving materials such as cotton, linen, wool, silk, nylon, and synthetic fibers.
  • Variable frequency stepless speed adjustment allows for convenient regulation and low failure rate.
  • The machine automatically stops when yarn depletion or breakage occurs, saving manpower and space.
  • It is used for weaving decorative lace edges for various high-end garments, footwear, bedding, curtains, gifts, and more.
Parameters
Model COH-64-45 COH-96-45
Ribbon number 64 96
Gauge (mm) 45 45
Bobbin size (mm) Φ37X91 Φ37X91
Lace width (mm) 5-150 5-200
Rotor speed (r/min) 0-260 0-260
Motor power (kW) 1.1 1.5
Outside size (mm) 2150x1320x1850 2650x1800x1950
Weight (kg) 980 1260
