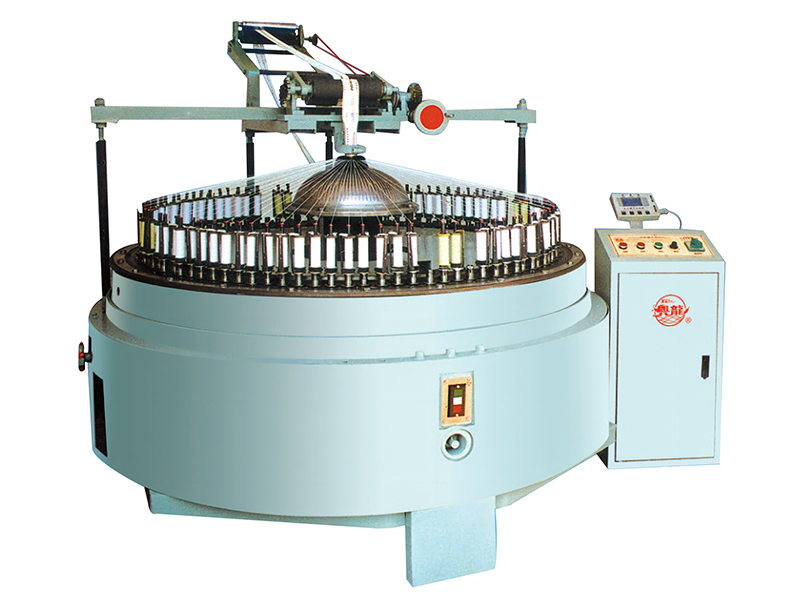

COHD computerized lace braiding machine with jacquard is the third generation of lace braiding machines. It replaces the patternmaking control technology with microcomputer control technology and the manual patternmaking, punching design and production technology with computer programming software technology. The braiding machine achieves remarkable technical performance indicators that rival those of similar international products, effectively bridging the gap in domestic production capabilities. Notably, it has received prestigious recognition as a national key new product. The computerized lace braiding machine boasts strong adaptability, high production efficiency, simple and convenient pattern design, modification, and preservation, among other advantages.
Model | |||
Ribbon number | 64 | 96 | 128 |
Gauge (mm) | 45 | 45 | 45 |
Bobbin size (mm) | Φ37X91 | Φ37X91 | Φ37X91 |
Lace width (mm) | 5-150 | 5-200 | 5-250 |
Rotor speed (r/min) | 0-260 | 0-260 | 0-260 |
Motor power (kW) | 1.1 | 1.5 | 2.2 |
Outside size (mm) | 1280x1280x1680 | 1800x1800x1680 | 2200x2200x1680 |
Weight (kg) | 760 | 1150 | 1460 |
