High Speed Round Braiding Machines (Round Rope)

High Speed Round Braiding Machines
High Speed Round Braiding Machines High Speed Flat Cord Braiding Machine High Speed Flat Cord Braiding Machine High Speed Flat Cord Braiding Machine High Speed Flat Cord Braiding Machine

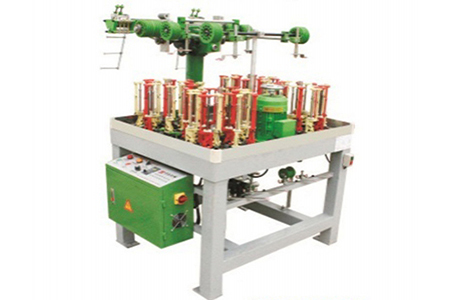

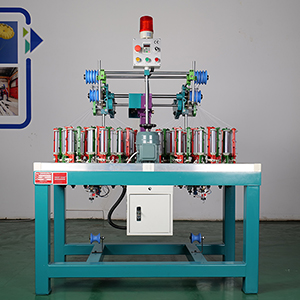

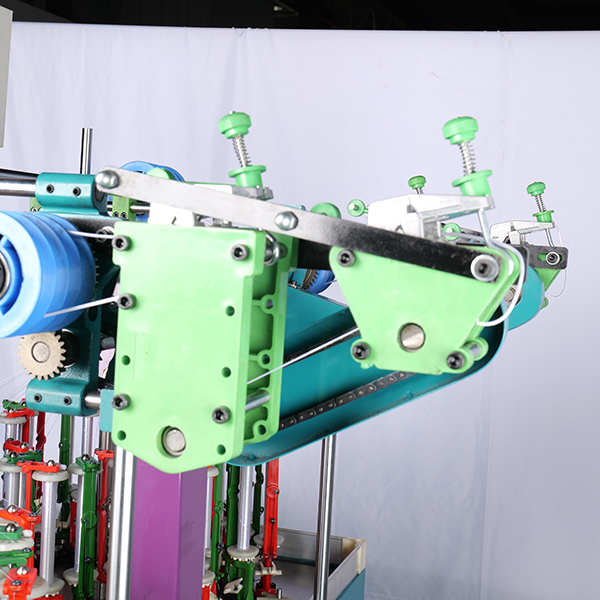

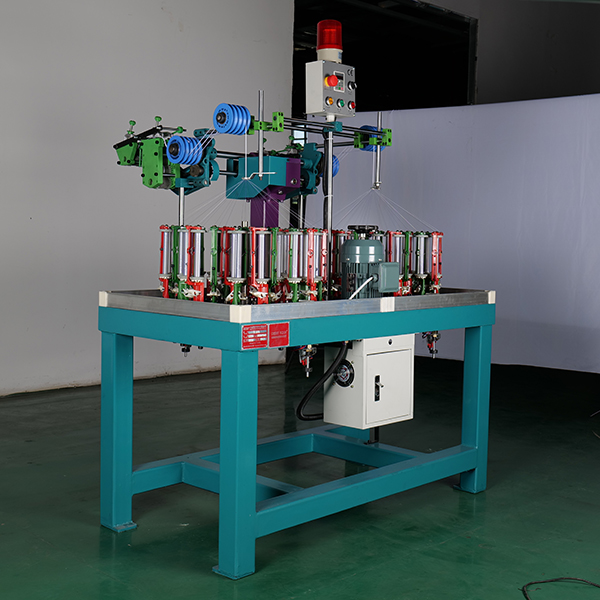

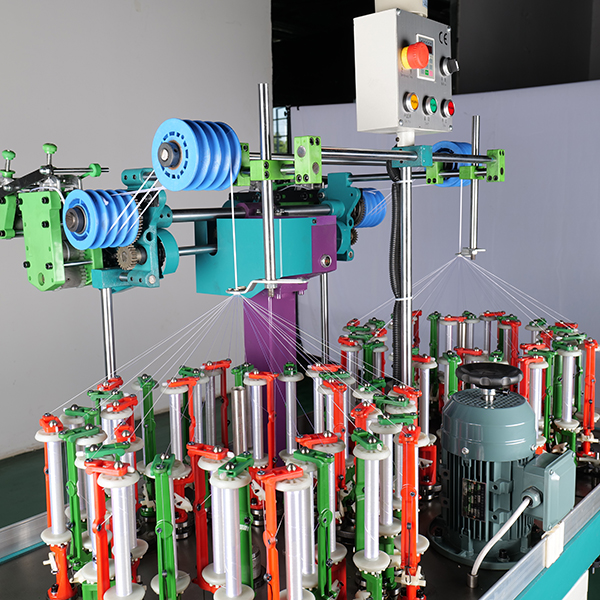

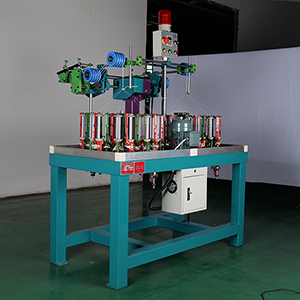

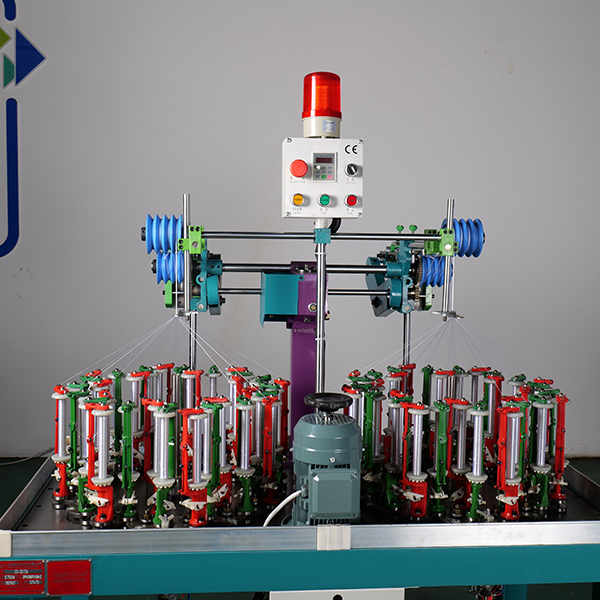

These high speed round braiding machines are compact pieces of equipment suitable for weaving different round cords. The round braiding machines feature double spindles and operate under frequency control that helps to optimize performance.

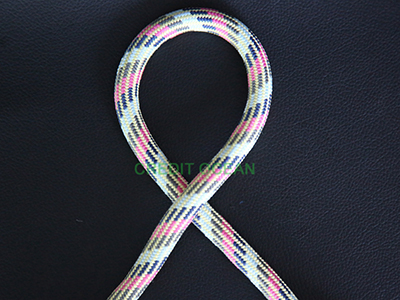

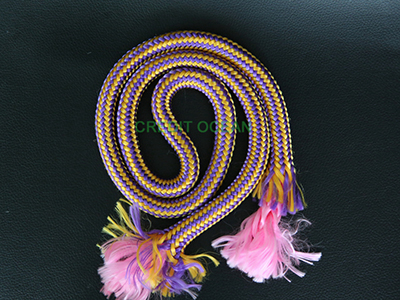

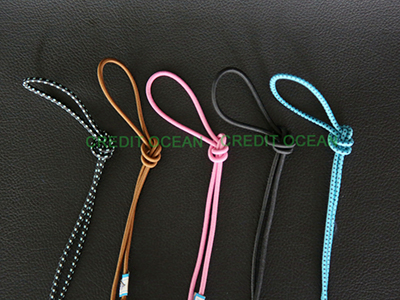

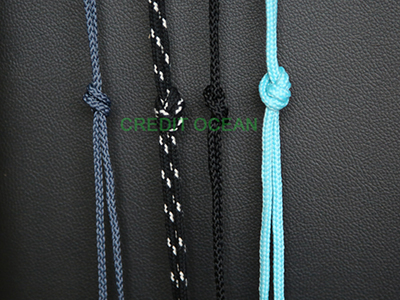

They are used to produce products like shoelaces, garment strings, elastic tape, pull tape, etc.

Parameters
Model Heads Carriers Max. horn gear (rpm) Power (kW) Bobbin size
C0-5-2-162 2 5 150 0.75 A13
CO-7-2-120 2 6 280 0.55 A 04
CO-9-4-80 4 9 360 0.55 A 01
CO-9-4-90 4 9 300 0.55 A 04
CO-9-8-80 8 9 360 1.1 A 01
CO-9-8-90 8 9 300 1.1 A 04
CO-11-8-80 8 11 360 0.75 A 01
CO-11-8-90 8 11 300 0.75 A 04
CO-12-4-80 4 12 360 0.55 A 01
CO-12-4-90 4 12 300 0.55 A 04
CO-13-2-80 2 13 360 0.55 A 01
CO-13-2-90 2 13 300 0.55 A 04
CO-13-2-130 2 13 242 0.75 A 13
CO-13-4-80 4 13 360 0.55 A 01
CO-13-4-90 4 13 300 0.55 A 04
CO-16-4-80 4 16 360 0.75 A 01
CO-16-4-90 4 16 300 0.75 A 04
CO-16-2-80 2 16 360 0.37 A 01
CO-16-2-90 2 16 300 0.37 A 04
CO-17-2-80 2 17 360 0.55 A 01
CO-17-2-90 2 17 300 0.55 A 04
CO-17-2-13 2 17 242 0.75 A 13
CO-17-4-80 4 17 360 0.75 A 01
CO-17-4-90 4 17 300 0.75 A 14
CO-20-4-80 4 20 360 0.75 A 01
CO-20-4-90 4 20 300 0.75 A 04
CO-21-2-80 2 21 360 0.55 A 01
CO-21-2-90 2 21 300 0.55 A 04
Co-21-4-80 4 21 360 0.75 A 01
CO-21-4-90 4 21 300 0.75 A 04
CO-24-2-80 2 24 360 0.55 A 01
CO-24-2-90 2 24 300 0.55 A 04
CO-25-2-80 2 25 360 0.55 A 01
CO-25-2-90 2 25 300 0.55 A 04
CO-25-4-80 4 25 360 0.75 A 01
CO-25-4-90 4 25 300 0.75 A 04
CO-25-2-11 2 25 230 0.75 A 07
CO-25-2-13 2 25 242 0.75 A 13
CO-26-2-90 2 26 300 0.55 A 01/04
CO-26-2-100 2 26 288 0.55 A 01/04
CO-27-2-90 2 27 300 0.55 A 01
CO-28-2-110 2 28 230 0.55 A 01
CO-29-2-80 2 29 360 0.55 A 01
CO-29-2-90 2 29 300 0.55 A 04
CO-29-2-11 2 29 230 0.75 A 01
CO-32-2-80 2 32 360 0.75 A 01
CO-32-2-90 2 32 300 0.75 A 04
CO-33-2-80 2 33 360 0.75 A 01
CO-33-2-90 2 33 300 0.75 A 04
CO-36-2-80 2 36 360 0.75 A 01
CO-36-2-90 2 36 300 0.75 A 04
CO-36-2-110 2 36 230 0.75 A012
C0-37-2-80 2 37 360 0.75 A 04
CO-37-90 1 37 300 0.75 A 01
CO-37-100 1 37 288 0.55 A 01
CO-37-2-90 2 37 300 0.75 A 01
CO-39-100 1 39 288 0.55 A 01
CO-40-80 1 40 360 0.75 A 01
CO-40-90 1 40 300 0.75 A 04
CO-40-2-80 2 40 360 0.75 A 01
CO-40-2-90 2 40 300 0.75 A 04
CO-41-80 1 41 360 0.75 A 01
CO-41-90 1 41 300 0.75 A 04
CO-41-110 1 41 230 0.55 A 07
