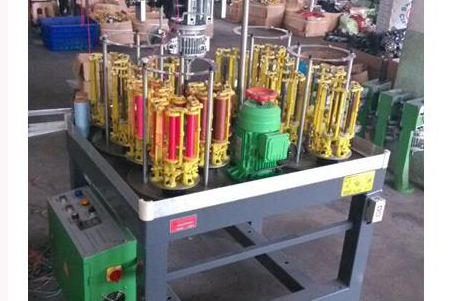

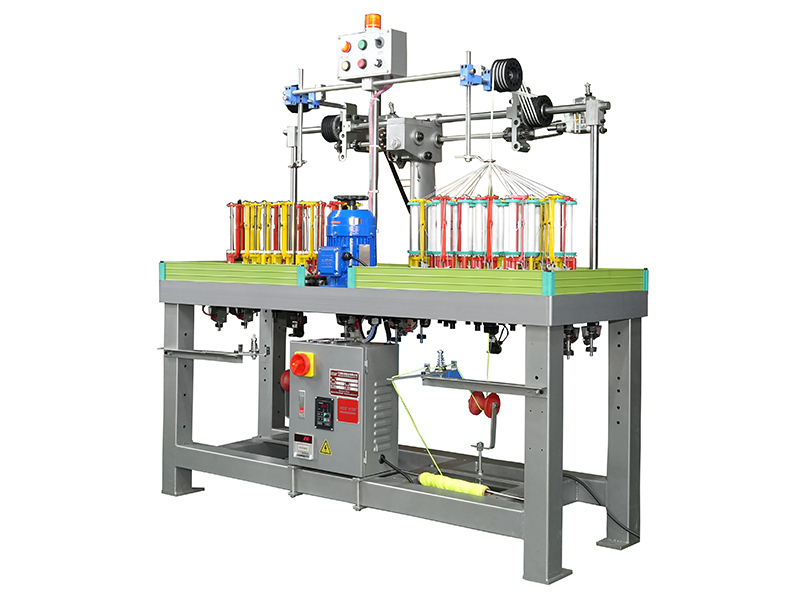

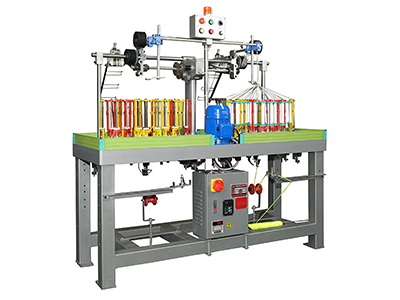

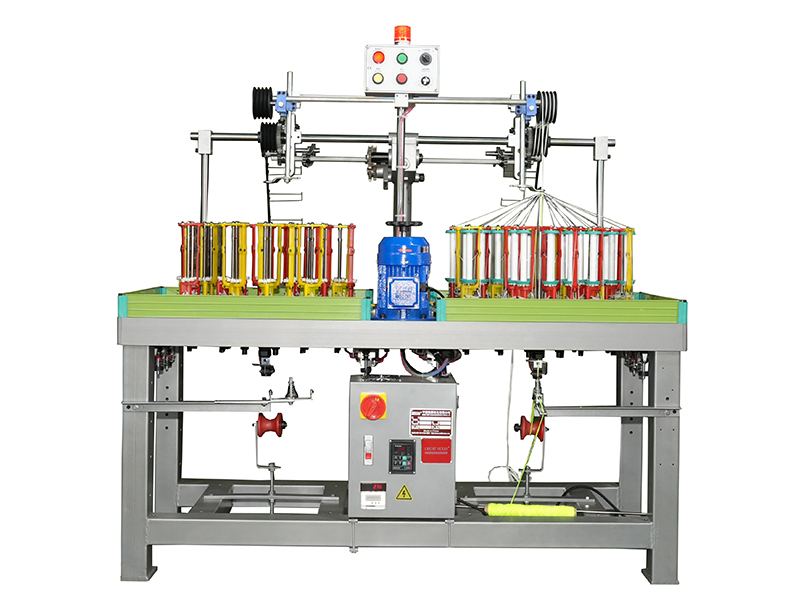

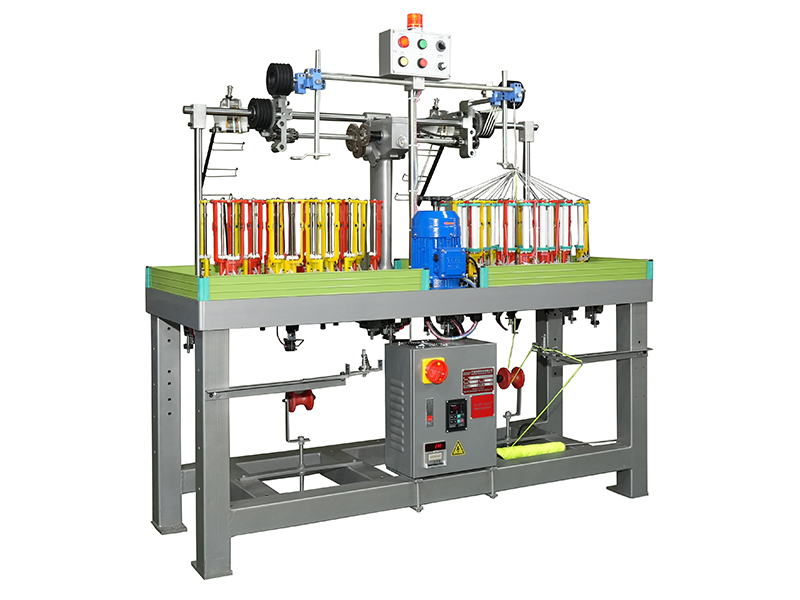

High Speed Special Cord Braiding Machines

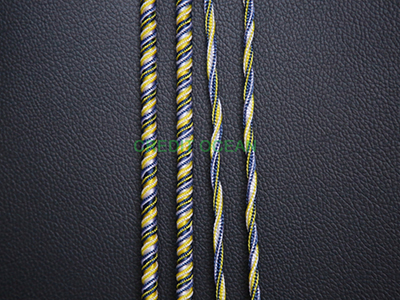

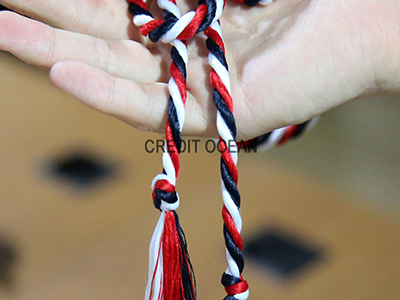

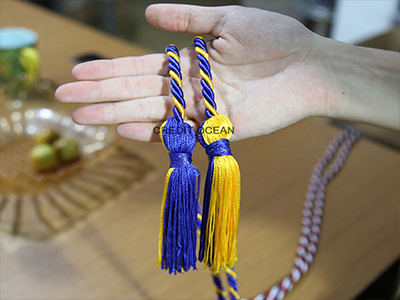

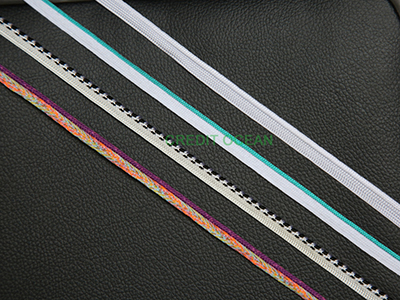

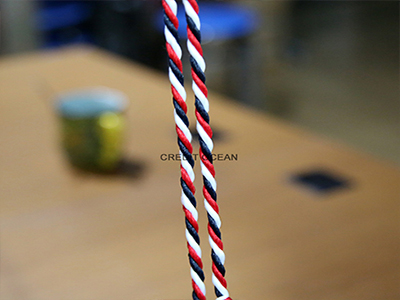

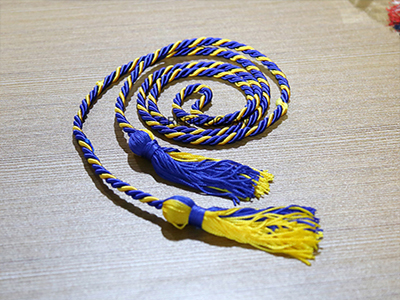

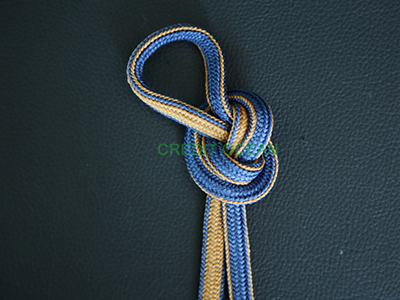

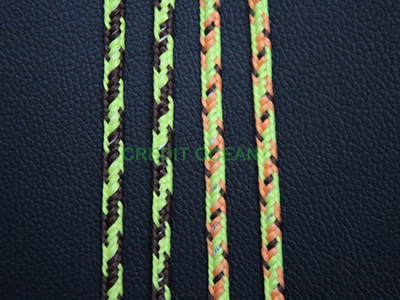

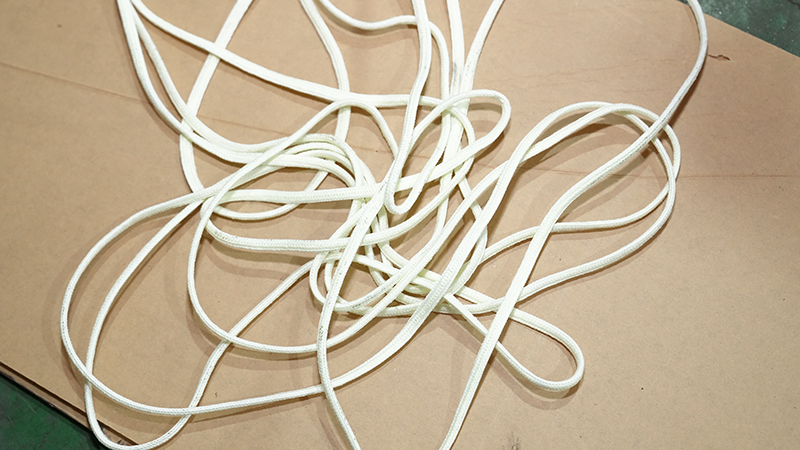

High speed special cord braiding machines are applied for weaving different special cords, like border embroidered, double surface, triangle, and square lace. The machine features simple operation and produces high quality products with minimal loss and manpower.
Parameters
| Model | Application | Carriers per head | Ribbon number | Horngear size | Motor power | Voltage | Rpm. hornger | Carrier type |
| COTR3-4A | Three strands twisted rope | 3 | 4 | / | 3/4HP(0.55KW) | 220V-380V | / | A |
| COTR3-4B | Three strands twisted rope | 3 | 4 | / | 3/4HP(0.55KW) | 220V-380V | / | B |
| COTR3-4A-W | Three strands twisted rope | 3 | 4 | / | 3/4HP(0.55KW) | 220V-380V | / | A |
| COTR3-4B-W | Three strands twisted rope | 3 | 4 | / | 3/4HP(0.55KW) | 220V-380V | / | B |
| COBS34-2AB-E | Border embroidered | 34 | 2 | 90 | 1HP(0.75KW) | 380v | 360 | AB |
| COBS26-2AB-S | Double surface | 26 | 2 | 90 | 3/4HP(0.55KW) | 220V-380V | 360 | AB |
| COBS34-2AB-S | Double surface | 34 | 2 | 90 | 1HP(0.75KW) | 380v | 360 | AB |
| COBS27-2AB-T | Ttriangle cord | 27 | 2 | 90 | 3/4HP(0.55KW) | 220V-380V | 360 | AB |
| COBS36-2AB-S | Suare cord | 36 | 2 | 90 | 1HP(0.75KW) | 380v | 360 | AB |
| COBS46-2AB-P | Person type | 46 | 2 | 90 | 1.5HP(1.1KW) | 380v | 360 | AB |
| COBS36-2AB-T | Tthree colors cord | 36 | 2 | 100 | 1HP(0.75KW) | 380v | 360 | AB |
| COBS39-1AB-T | Three color cord | 39 | 1 | 100 | 1HP(0.75KW) | 220V-380V | 340 | AB |
| COBS8-4A-R | Ruyi cord | 8 | 4 | 112.5 | 3/4HP(0.55KW) | 220V-380V | 315 | A |
| COBS52-2AB-S | Four color cord | 52 | 2 | 90 | 1HP(0.75KW) | 380v | 360 | AB |
| COBJ12-2A | Jack stay cord | 12 | 2 | / | 3/4HP(0.55KW) | 220V-380V | 900 | A |
| COB18-2A | Jack stay cord | 18 | 2 | / | 3/4HP(0.55KW) | 220V-380V | 900 | A |
| COBJ20-2A | Jack stay cord | 20 | 2 | / | 1HP(0.75KW) | 220V-380V | 900 | A |
| COBJ12-2B | Jack stay cord | 12 | 2 | / | 1HP(0.75KW) | 220V-380V | 900 | B |
| COB18-2B | Jack stay cord | 18 | 2 | / | 1HP(0.75KW) | 220V-380V | 900 | B |
| COBJ20-2B | Jack stay cord | 20 | 2 | / | 1.5HP(1.1KW) | 380v | 900 | B |
| COBF39-1A | Three color cord | 39 | 1 | / | 0.75KW | 220V/380V | 340 | A |
| COBF52-2AB-S | Four color cord | 52 | 2 | / | 0.75KW | 380V | 360 | AB |
| COBR46-2AB | Bias tape/thick-thin tape | 46 | 2 | / | 1.1KW | 380V | 340 | AB |
