High Speed Flat Braiding Machine (Flat Rope)

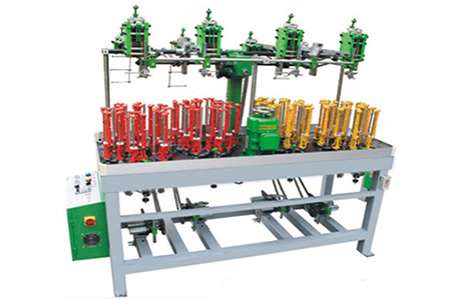

High Speed Flat Cord Braiding Machine
High Speed Flat Cord Braiding Machine High Speed Flat Cord Braiding Machine

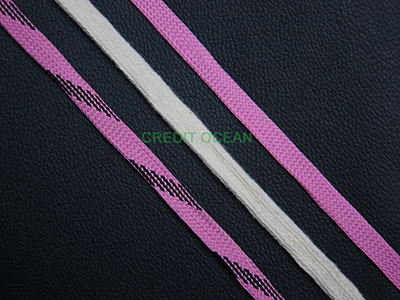

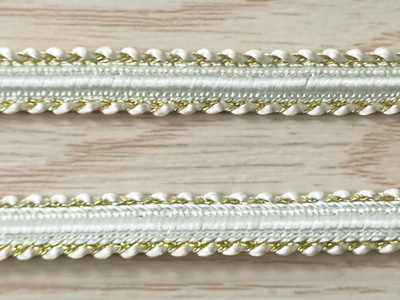

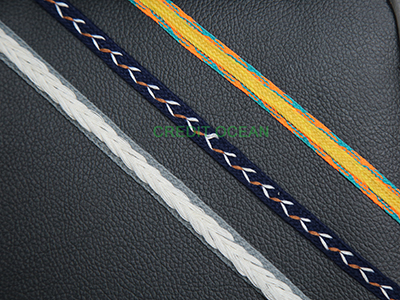

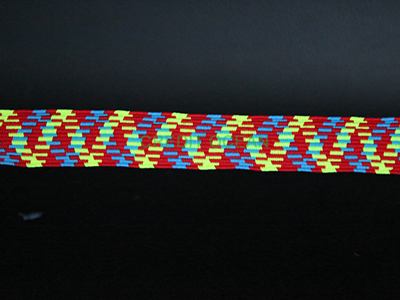

High speed flat cord braiding machines are used for weaving different flat cords and products like handbag lace, shoelaces, garment strings, elastic tape, pull tape, etc.

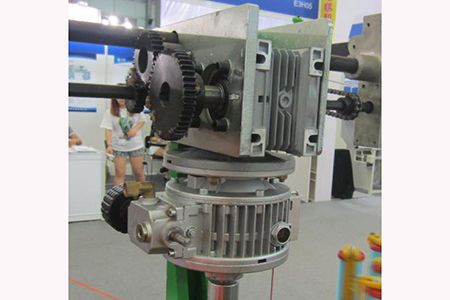

The braiding machine adopts frequency control, giving it superior performance, simple operation, good quality, high production output, and low loss.

  • High Speed Flat Cord Braiding Machine
  • High Speed Flat Cord Braiding Machine
  • High Speed Flat Cord Braiding Machine
  • High Speed Flat Cord Braiding Machine
Parameters
Model Heads Carriers Max. horn gear (rpm) Power (kW) Bobbin size
C0-5-2-162 2 5 150 0.75 A13
CO-7-2-120 2 6 280 0.55 A 04
CO-9-4-80 4 9 360 0.55 A 01
CO-9-4-90 4 9 300 0.55 A 04
CO-9-8-80 8 9 360 1.1 A 01
CO-9-8-90 8 9 300 1.1 A 04
CO-11-8-80 8 11 360 0.75 A 01
CO-11-8-90 8 11 300 0.75 A 04
CO-12-4-80 4 12 360 0.55 A 01
CO-12-4-90 4 12 300 0.55 A 04
CO-13-2-80 2 13 360 0.55 A 01
CO-13-2-90 2 13 300 0.55 A 04
CO-13-2-130 2 13 242 0.75 A 13
CO-13-4-80 4 13 360 0.55 A 01
CO-13-4-90 4 13 300 0.55 A 04
CO-16-4-80 4 16 360 0.75 A 01
CO-16-4-90 4 16 300 0.75 A 04
CO-16-2-80 2 16 360 0.37 A 01
CO-16-2-90 2 16 300 0.37 A 04
CO-17-2-80 2 17 360 0.55 A 01
CO-17-2-90 2 17 300 0.55 A 04
CO-17-2-13 2 17 242 0.75 A 13
CO-17-4-80 4 17 360 0.75 A 01
CO-17-4-90 4 17 300 0.75 A 14
CO-20-4-80 4 20 360 0.75 A 01
CO-20-4-90 4 20 300 0.75 A 04
CO-21-2-80 2 21 360 0.55 A 01
CO-21-2-90 2 21 300 0.55 A 04
Co-21-4-80 4 21 360 0.75 A 01
CO-21-4-90 4 21 300 0.75 A 04
CO-24-2-80 2 24 360 0.55 A 01
CO-24-2-90 2 24 300 0.55 A 04
CO-25-2-80 2 25 360 0.55 A 01
CO-25-2-90 2 25 300 0.55 A 04
CO-25-4-80 4 25 360 0.75 A 01
CO-25-4-90 4 25 300 0.75 A 04
CO-25-2-11 2 25 230 0.75 A 07
CO-25-2-13 2 25 242 0.75 A 13
CO-26-2-90 2 26 300 0.55 A 01/04
CO-26-2-100 2 26 288 0.55 A 01/04
CO-27-2-90 2 27 300 0.55 A 01
CO-28-2-110 2 28 230 0.55 A 01
CO-29-2-80 2 29 360 0.55 A 01
CO-29-2-90 2 29 300 0.55 A 04
CO-29-2-11 2 29 230 0.75 A 01
CO-32-2-80 2 32 360 0.75 A 01
CO-32-2-90 2 32 300 0.75 A 04
CO-33-2-80 2 33 360 0.75 A 01
CO-33-2-90 2 33 300 0.75 A 04
CO-36-2-80 2 36 360 0.75 A 01
CO-36-2-90 2 36 300 0.75 A 04
CO-36-2-110 2 36 230 0.75 A012
C0-37-2-80 2 37 360 0.75 A 04
CO-37-90 1 37 300 0.75 A 01
CO-37-100 1 37 288 0.55 A 01
CO-37-2-90 2 37 300 0.75 A 01
CO-39-100 1 39 288 0.55 A 01
CO-40-80 1 40 360 0.75 A 01
CO-40-90 1 40 300 0.75 A 04
CO-40-2-80 2 40 360 0.75 A 01
CO-40-2-90 2 40 300 0.75 A 04
CO-41-80 1 41 360 0.75 A 01
CO-41-90 1 41 300 0.75 A 04
CO-41-110 1 41 230 0.55 A 07
