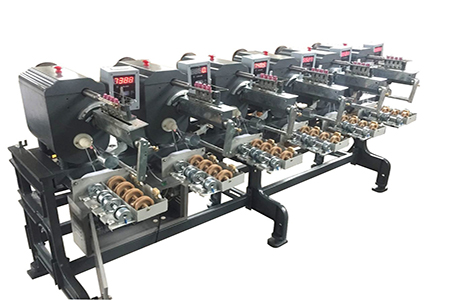

The CO-2E prewound bobbin winders are specially designed to produce small bobbins for embroidery machines. It is applicable for different counts of yarn, such as 40/2, 60/2, 75/2 of cotton thread, polyester yarn, high stretch yarn and mercerized yarn.
Equipped with length counter and tension force controller device, the prewound bobbin winder performs with high reliability, low noise, easy-operation and produces bobbins with uniform patterns. It is an excellent choice for medium and large garment factories, embroidery factories, and thread factories.
No. of spindle | 6 spindles |
Bobbins per spindle | 4 bobbins per spindle |
Motor | 0.18w 220v/380v/440v 50Hz/60Hz |
N.Weight | 420 KG |
G.Weight | 550KG |
Machines volume | 2250×700×1150mm(L×W×H) |
Measurement | 2350×800×1250mm(L×W×H) |
Yarn application | 20/2 30/2 40/2 50/2 60/2 75D/2 150D/2 and other special yarn |
Productivity | It can produce 24 bobbins of 130 meters within one minute |
