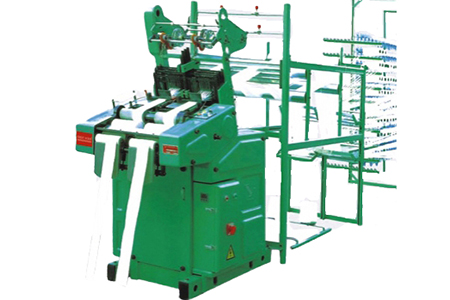

COS Heavy Narrow Fabric Needle Loom, Industrial Webbing Equipment

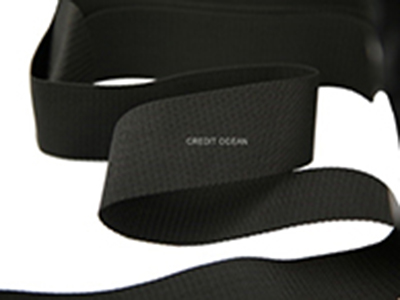

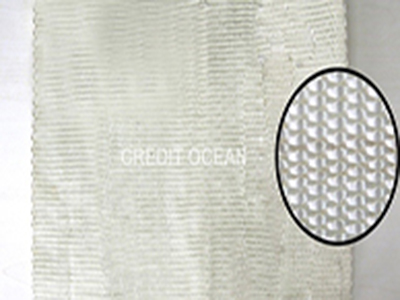

The COS needle loom is dedicated to the production of heavy ribbons like the hanging ribbons and the straping of FIBC bags.
This machine is used to weaving a larger number of yarns, so there are higher demands on the power and stability of the machine. Our equipment is outfitted with built-in yarn tension frames of 640 spindles to deliver greater tension stability for weaving.
Optional Models
| Model | 8/35 | 6/55 | 4/60 | 4/90 | 2/110 | 2/130 |
| Weaving head | 8 | 6 | 4 | 4 | 2 | 2 |
| Width of weaving head | 35 | 55 | 60 | 90 | 110 | 130 |
| Number of frame | 8 | 8 | 8 | 8 | 8 | 8 |
| Weft density | 3.5~36.7/cm | 1.8~5/cm | ||||
| Pattern chain cycle | 1:8 | 1:48 | 1:8 | 1:48 | cam | 1:8 |
Size and weight
| Item | Packing meas（mm） | Net weight（kg） | Gross weight（kg） |
| Machine | 1120*920*2000 | 505 | 520 |
| Tension frame | 2200*400*210 | 112 | 125 |
| Creel | 2640*500*420 | 240 | 265 |
