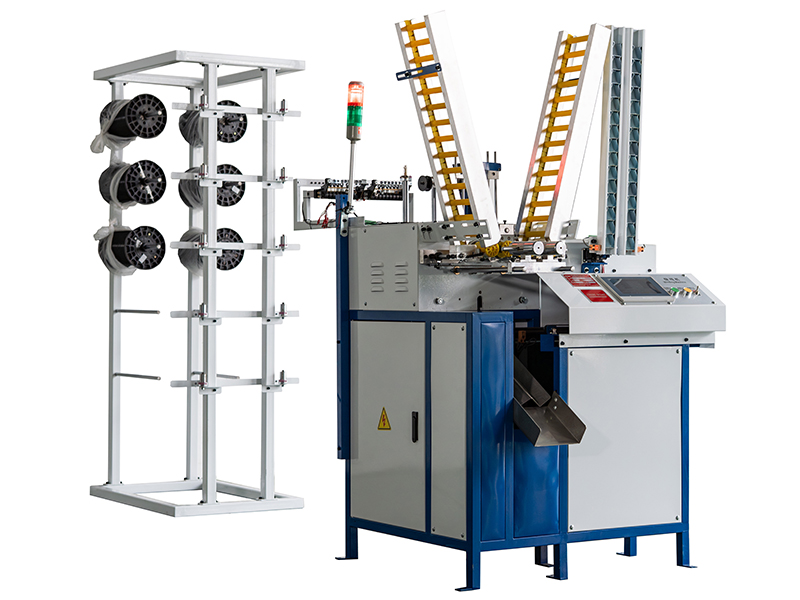

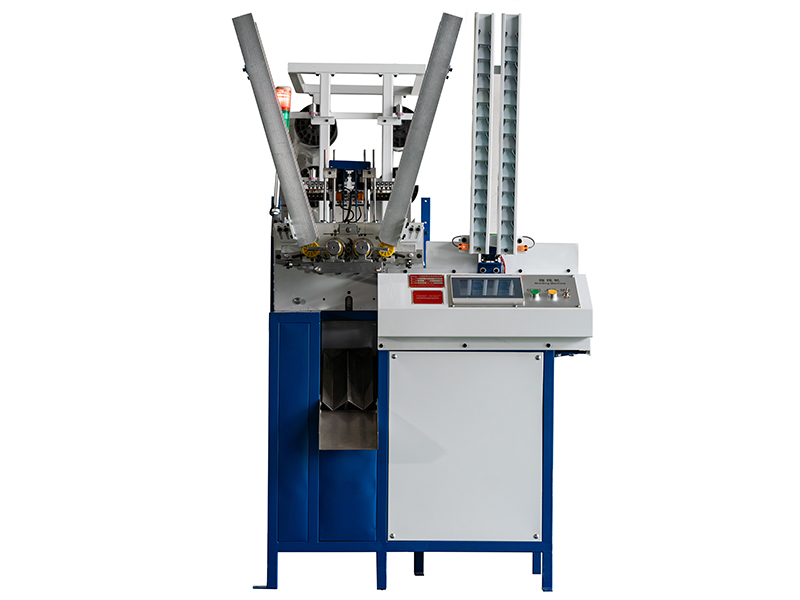

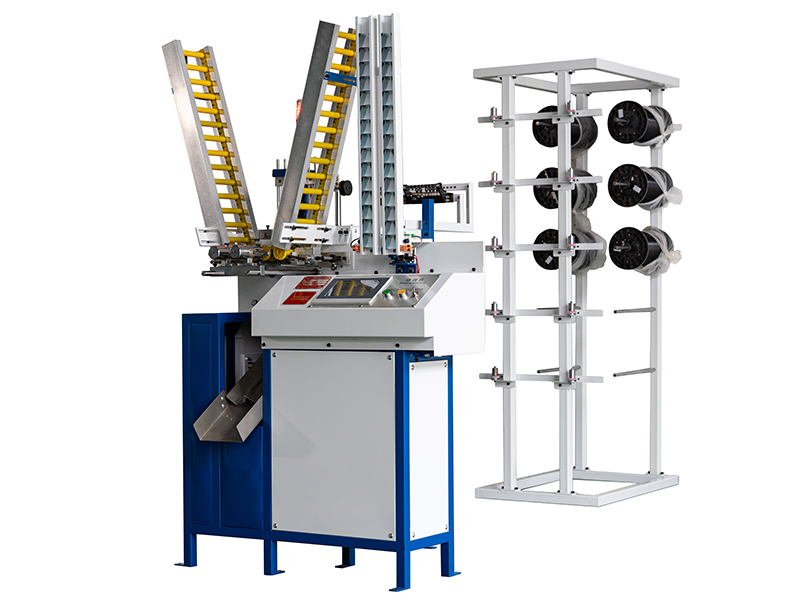

XY-828 Automatic Bobbin Winding Machine

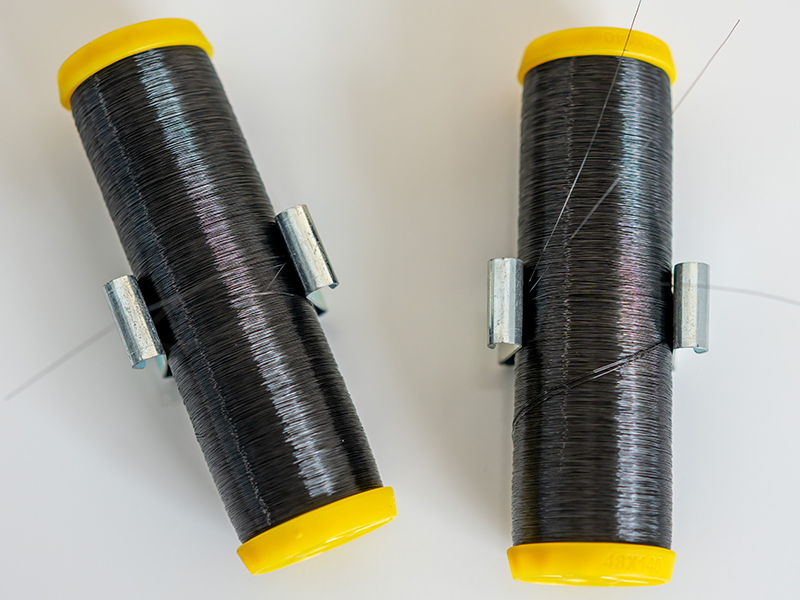

XY-828 automatic bobbin winding machine is specially designed for winding nylon monofilament yarns and bobbin forming. It meets production requirements for consistent package formation, high winding efficiency, and effective production control.

It is widely used in pre-winding processes for weaving and webbing production, improving overall production efficiency and quality control.

Parameters

Speed: 3500 rpm
Voltage: 220V / 50Hz
Power: 0.7 kW
Creel size: 0.86 × 0.56 × 1.75 m
Creel weight: 50 kg
Machine size: 1.26 × 1.08 × 1.65 m
Machine weight: 175 kg
