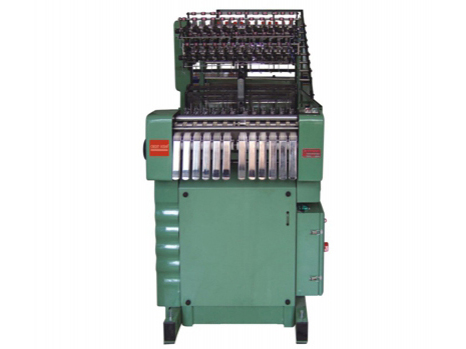

COF5 Needle Loom

COF5 Needle Loom
COF5 Needle Loom COF5 Needle Loom COF5 Needle Loom COF5 Needle Loom COF5 Needle Loom COF5 Needle Loom

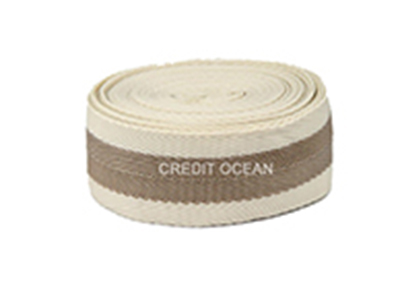

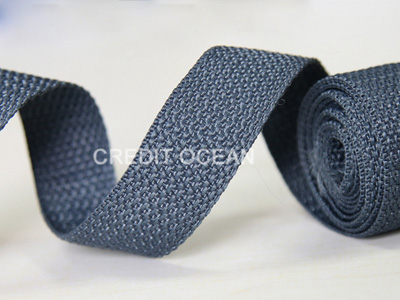

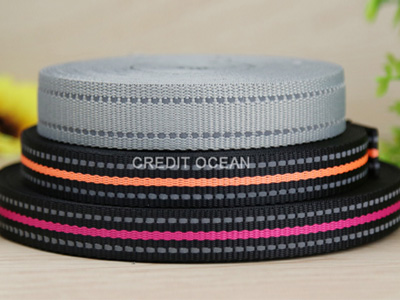

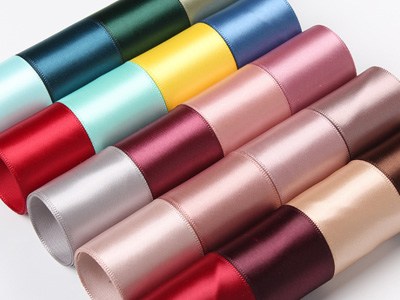

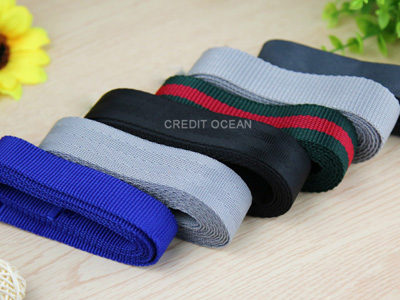

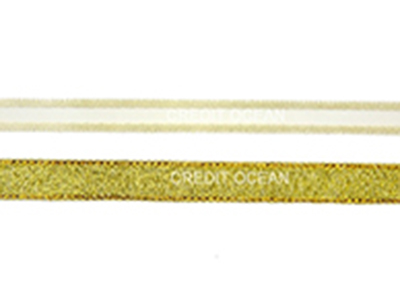

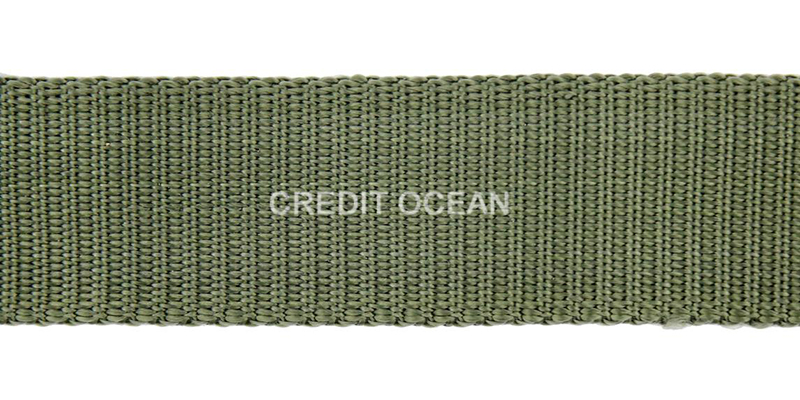

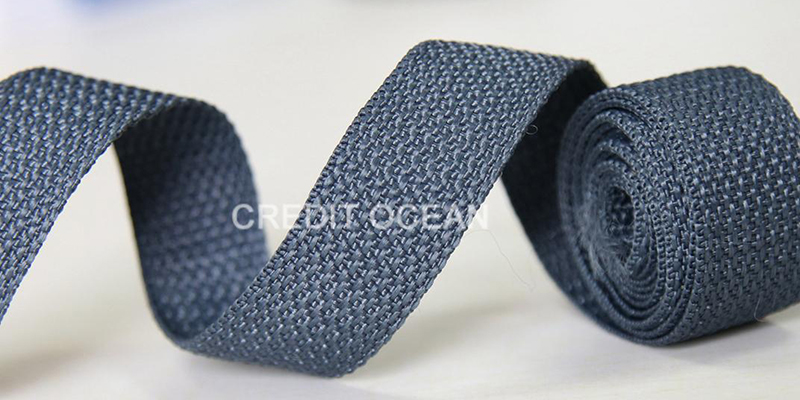

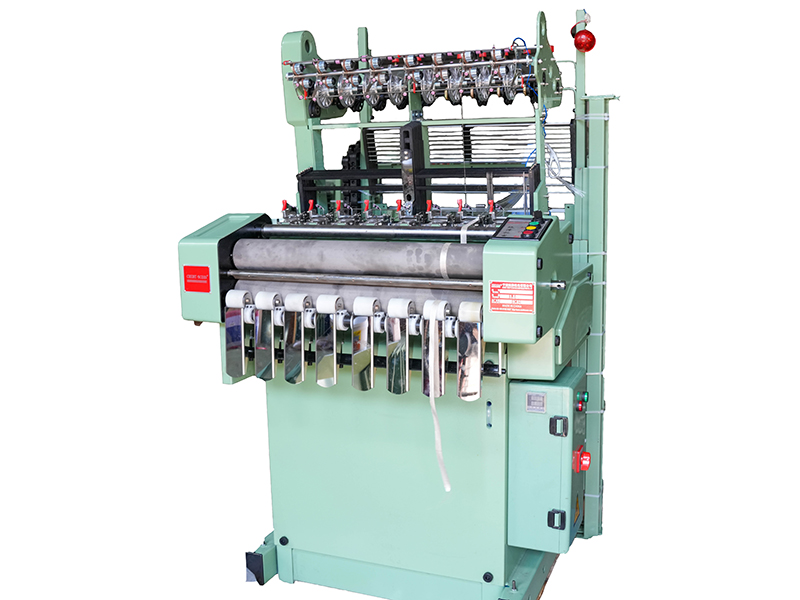

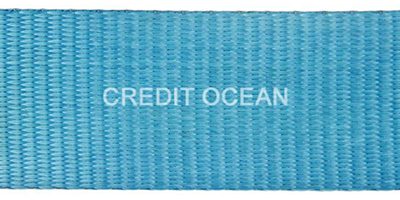

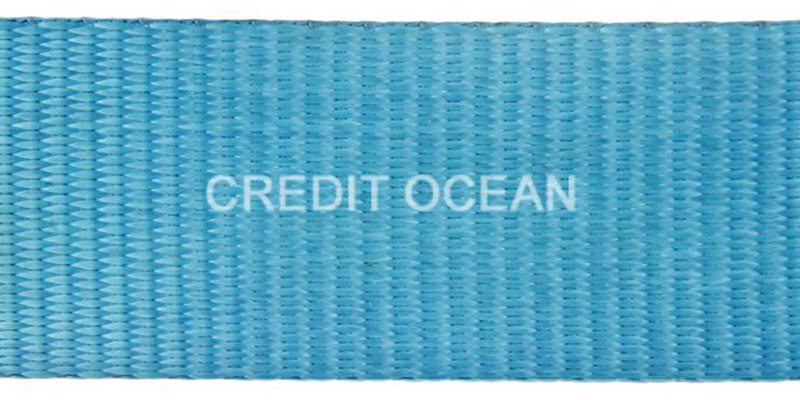

High-speed needle loom is suitable for producing various narrow fabrics, including PP webbing, cotton tapes, safety webbing, and elastic tapes, in a wide range of widths and thicknesses. It uses 12–16 heald frames to control pattern formation and supports 2–12 webbing lines with widths up to 200 mm. The upgraded machine structure features a more vertical heald frame alignment, which results in finer fabric edges, higher operating speeds, improved stability, and enhanced selvedge quality.

Features

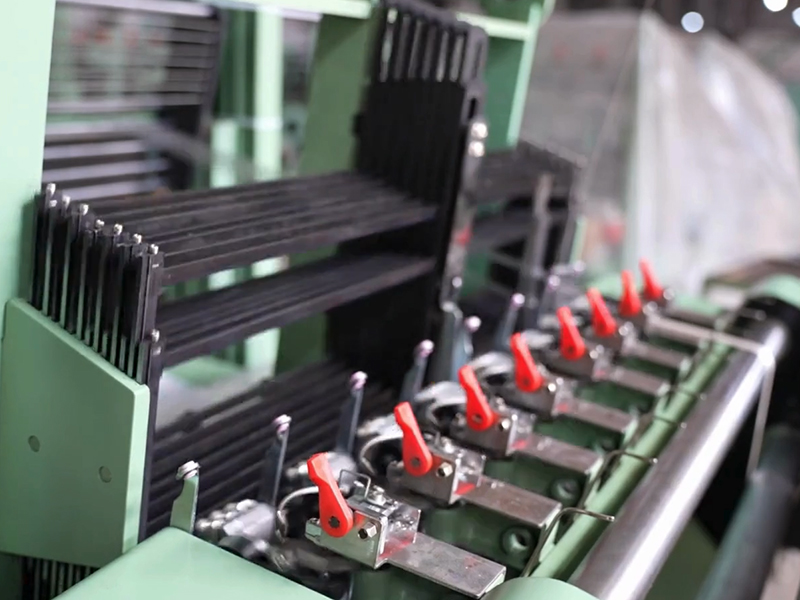

  • Flexible pattern arrangement via a chain-link system and nylon block connection, enabling easy pattern changes with high accuracy.
  • Automatic circulating lubrication system ensures easy maintenance, low noise, and extended service life.
  • Automatic yarn break stop with a warning indicator; rapid motor braking minimizes yarn waste.
  • Dual electrical control system with an integrated length counter for safer and more convenient operation.
Parameters
Model No. Of Tape Lines Reed Width Heald Frames Pattern Chain Cycle Motor Power Speed
2/200 2 200 mm 12–16 8–48 times/min 1.5 kW (dual-frequency control) 600 rpm
2/110 2 110 mm 12–16 8–48 times/min 1.5 kW (brake motor) 600 rpm
2/165 2 165 mm 12–16 8–48 times/min 1.5 kW (dual-frequency control) 500 rpm
4/55 4 55 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
4/65 4 65 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
4/80 4 80 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
6/45 6 45 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
6/55 6 55 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
8/30 8 30 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
8/35 8 35 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
8/45 8 45 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
8/55 8 55 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
10/30 10 30 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
12/25 12 25 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
14/20 14 20 mm 12–16 8–48 times/min 1.5 kW (brake motor) 850 rpm
