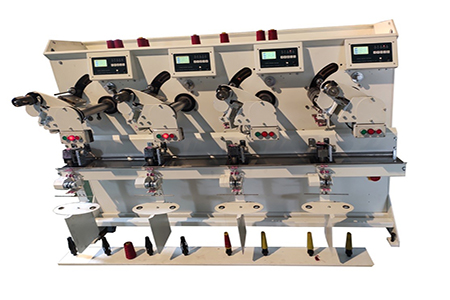

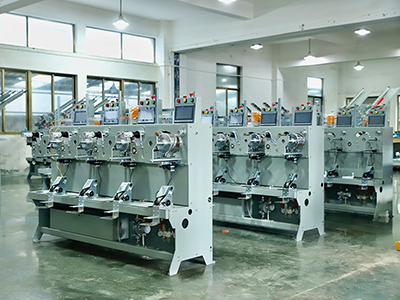

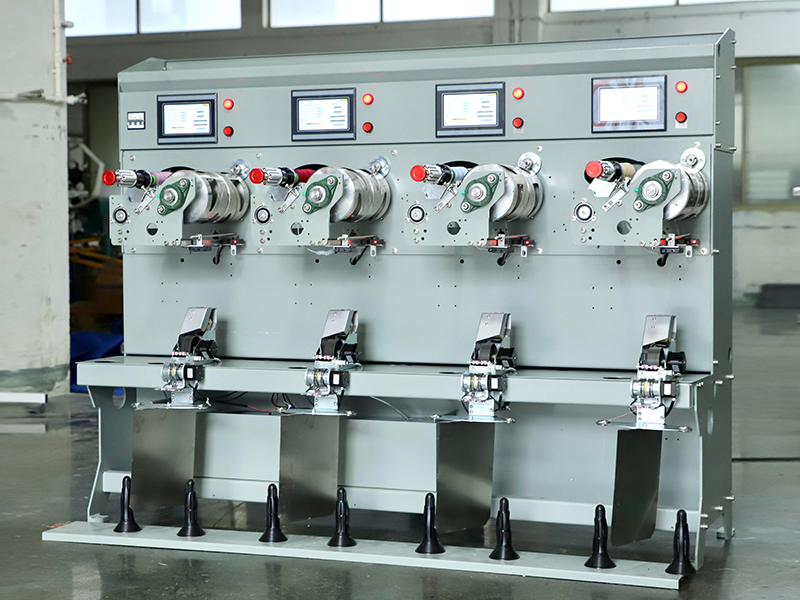

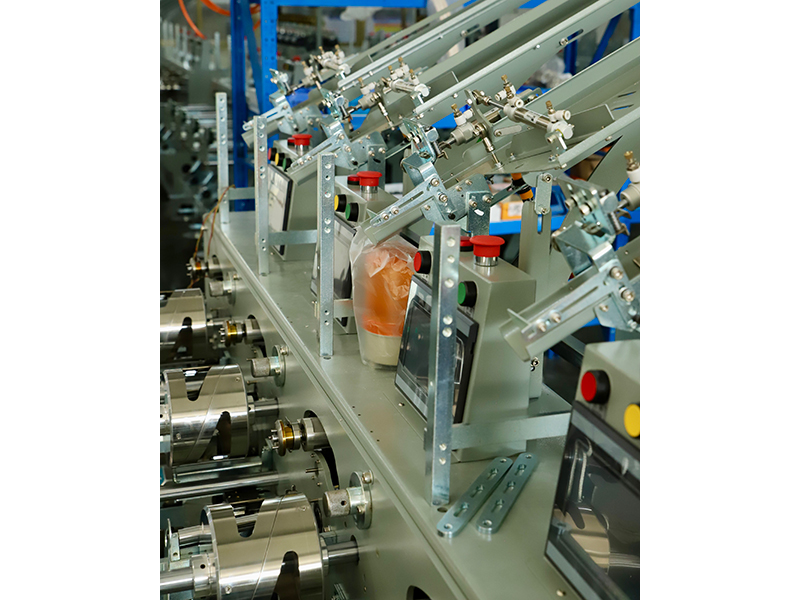

High Speed Sewing Thread Winding Machine

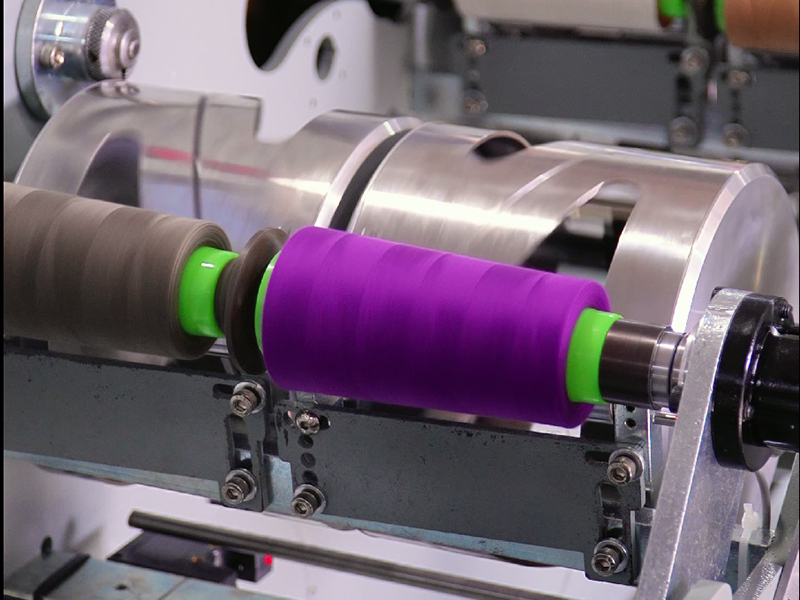

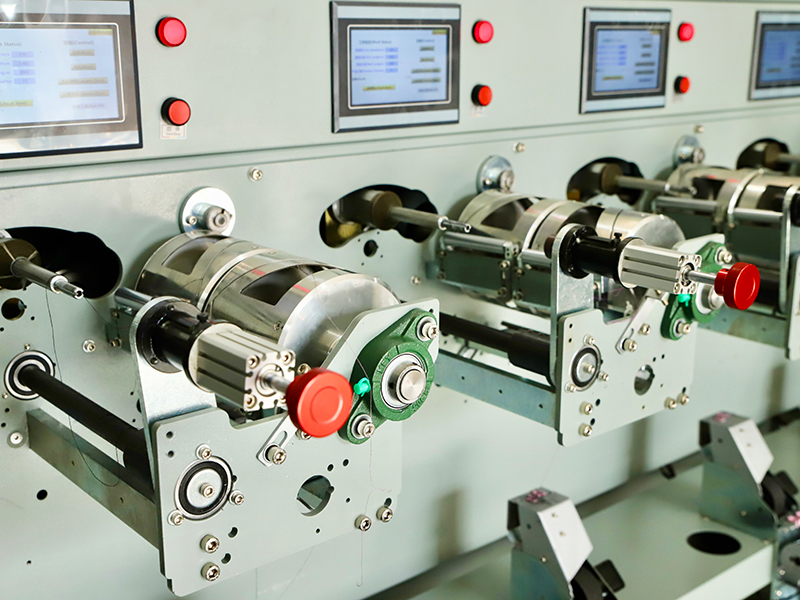

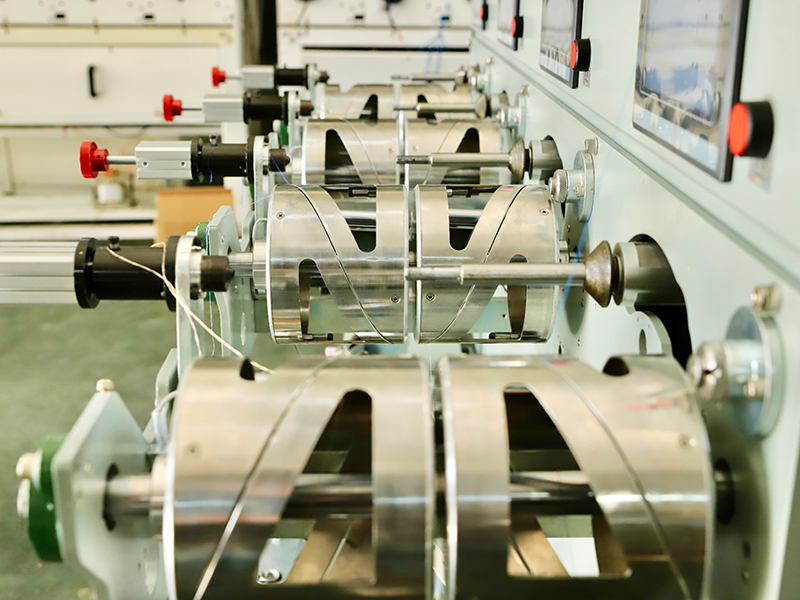

Our high speed sewing thread winding machines are applied for the neat and high efficiency winding of sewing thread, embroidery thread, nylon thread, etc. Our sewing thread winding machine features high efficiency and easy operation due to a computer auto control system, frequency control, grooved drum style wire, magnetic tension control, and circulating pumping sets of oil pumps. The winding speed can reach up to 1000 m/min.
Parameters
| Model | C0-001 | C0-002 |
| Shape | Cone type | Horn type |
| No of spindles | 4 | 4 |
| Cone for each spindle | 1or 2 | 1or 2 |
| Tube angle | 0°-2°20′ | 2°20′-5°57′ |
| Max. winding speed | 800mtrs/min | |
| Max. winding-up Dia. | 115mm | |
| Measurement(M^3) | 212-103*163MM | |
| Pattern round number | 3-4 | |
| Full spool length | 0-60000m | |
| Winding linear speed | 200-1000m/min | |
| Oil wheel speed ratio | 30-2000 | |
| Winding initial tension | 0-100% | |
| Winding end tension | 0-100% | |
| Yarn detector state | 0.0-9999second | |
| Empty spool position confirmation | Computer test value | |
| Fixed block position confirmation | Compute test value | |
| Motor power | 1.5KW | |
| Machines measurement | 2.12×1.02×163m ( L×W×H ) | |
| Net Weight | 600KG | |
| Gross Weight | 700KG | |
| Length correction coefficient | 0.800-1.200 | |
