COF5J Electronic Jacquard Loom COF5J Electronic Jacquard Loom

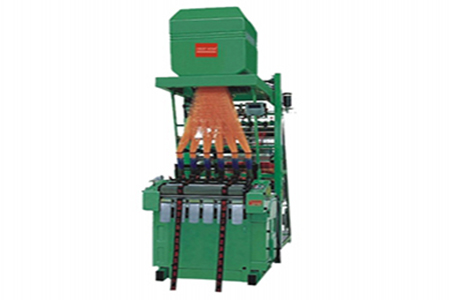

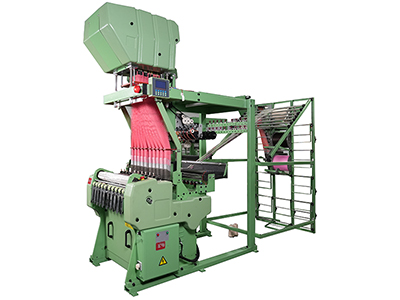

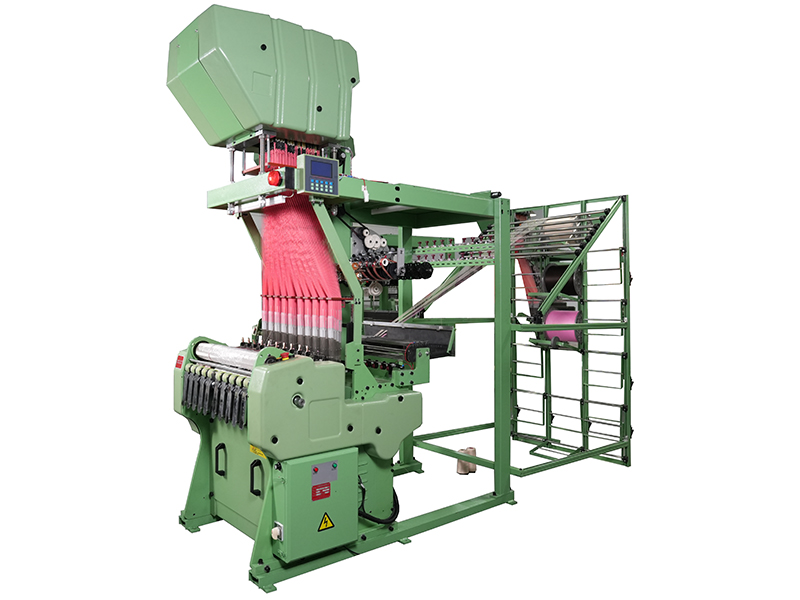

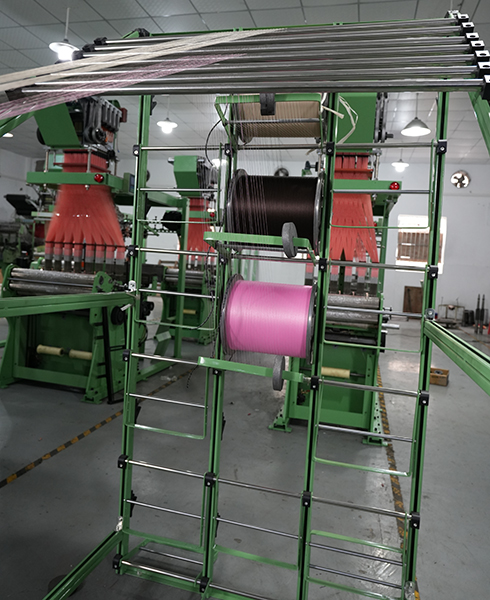

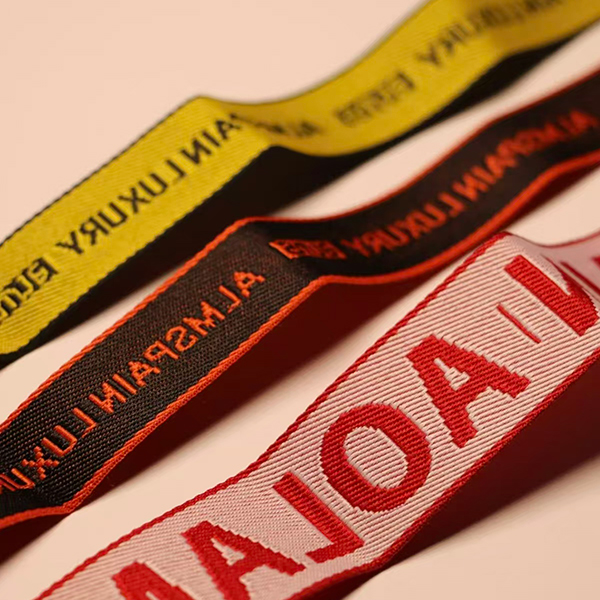

The COF5J electronic jacquard loom can weave fabrics with complicated patterns, including elastic loops and inelastic loops. According to your different jacquard pattern requirements, we can offer you various electronic jaquard looms with different numbers of threads.

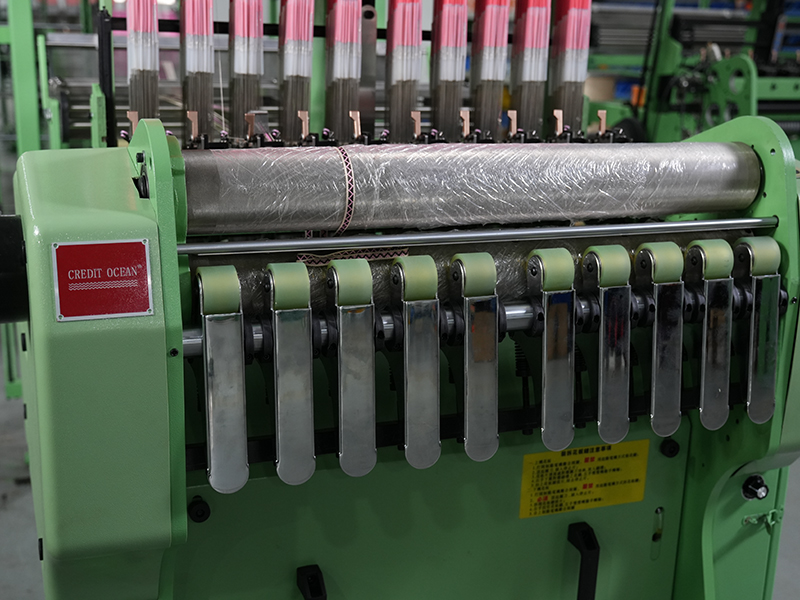

We offer rubber or metal take-off rollers for you to choose from.

  • High Speed Flat Cord Braiding Machine
  • High Speed Flat Cord Braiding Machine
  • High Speed Flat Cord Braiding Machine
  • COF5J Electronic Jacquard Loom
  • COF5J Electronic Jacquard Loom
  • COF5J Electronic Jacquard Loom
  • COF5J Electronic Jacquard Loom
Parameters
Model Number of lines Reed width (mm) Heald frame Pick repeat (mm) Motor power (kW) Speed (rpm)
2/110/768T 2 110 6 8-48 2HP 750-850
4/65/192T(M) 4 65 6 8-48 2HP 850-1000
4/65/256T(M) 4 65 6 8-48 2HP 850-1000
4/65/320T 4 65 6 8-48 2HP 850-1000
4/65/384T 4 65 6 8-48 2HP 750-850
4/65/480T 4 65 6 8-48 2HP 750-850
4/80/480T 4 80 6 8-48 2HP 750-850
4/80/640T 4 80 6 8-48 2HP 750-850
6/45/128T(M) 6 45 6 8-48 2HP 850-1000
6/45/192T(M) 6 45 6 8-48 2HP 850-1000
6/45/320T 6 45 6 8-48 2HP 750-850
6/45/384T 6 45 6 8-48 2HP 750-850
6/55/128T(M) 6 55 6 8-48 2HP 850-1000
6/55/192T(M) 6 55 6 8-48 2HP 850-1000
6/55/256T(M) 6 55 6 8-48 2HP 850-1000
6/55/320T 6 55 6 8-48 2HP 750-850
6/55/384T 6 55 6 8-48 2HP 750-850
6/55/480T 6 55 6 8-48 2HP 750-850
8/30/128T(M) 8 30 6 8-48 2HP 850-1000
8/35/192T(M) 8 35 6 8-48 2HP 750-850
10/30-256T 10 30 6 8-48 2HP 750-850
