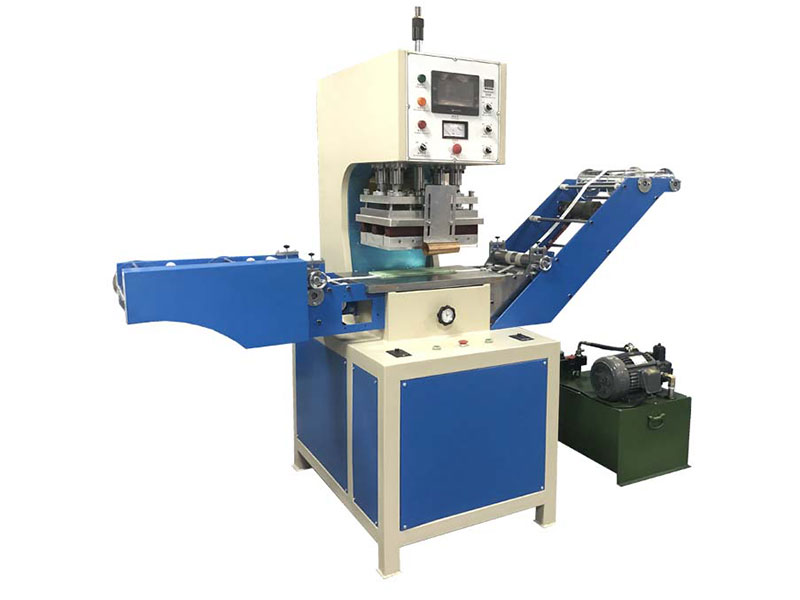

Elastic tape embossing machine uses high frequency and its oscillator can produce high frequency electromagnetic field to trigger the molecules inside the to-be-processed material collide with each other fiercely. Then heat is generated automatically for welding the material, making the finished product surface more perfect.




| Model | 5kW Elastic Tape Embossing Machine |
| Power supply | 220V/380V 3P 50/60Hz |
| Power | 8KVA |
| Frequency | 27.12MHz |
| Working size | 300*400mm |
| Oscillating tube | 7T85RB |
| Gap of electrode | 170mm |
| Oil pump | 2T oil pressure |
| Dimensions | 2600*1200*2200 |
| Weight | About 800kg |

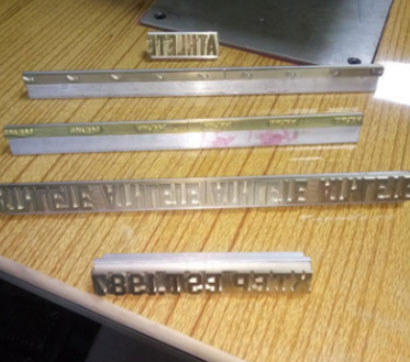

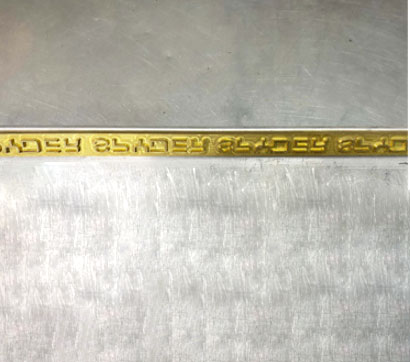

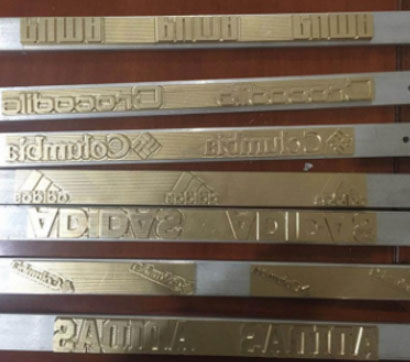

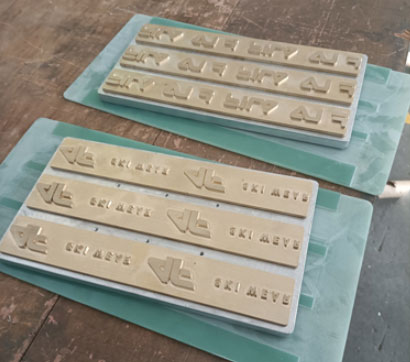

Elastic tape embossing machine is mainly used for embossing patterns, characters, logos and marks on a lot of materials, such as chemical fiber belt, general stretch strap, elastic tape, edge binding tape, braided tape, elastic tape (except for cotton tape), etc.
