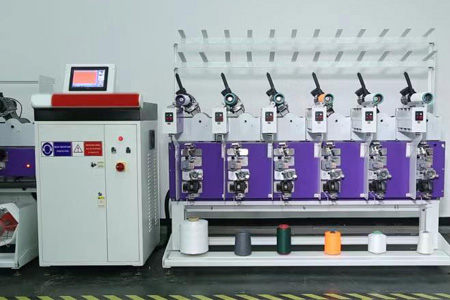

CO-50 Precision Rewinding Machine (Dye Packaging Winding, Dye Tube to Cone)

CO-50 Precision Rewinding Machine (Dye Packaging Winding, Dye Tube to Cone)

This precision rewinding machine features separate control per spindle and is available with a soft yarn cone or hard yarn cone depending on your needs.

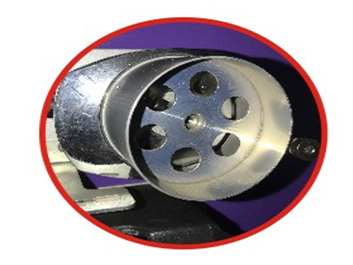

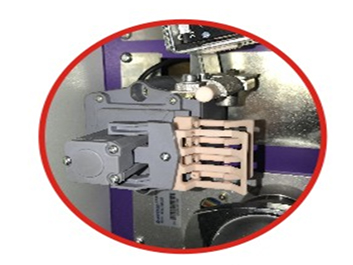

The winding machine is equipped with an online tensioner to sense and adjust the yarn tension through an instant acceleration or deceleration of the overfeeding roller.

This results in a constant level of tension and produces a better quality product.

Our CO-50 precision rewinding machines are PLC controlled and any error will be displayed on the PLC screen for quick troubleshooting and greater operating efficiency.

  • CO-50 Precision Rewinding Machine (Dye Packaging Winding, Dye Tube to Cone)
  • CO-50 Precision Rewinding Machine (Dye Packaging Winding, Dye Tube to Cone)
  • CO-50 Precision Rewinding Machine (Dye Packaging Winding, Dye Tube to Cone)
  • CO-50 Precision Rewinding Machine (Dye Packaging Winding, Dye Tube to Cone)
Parameters
Traverse length 25-250 mm adjustable
Package weight Up to 5 kg
Yarn count range 10 d-3000 d
Number of spindles per section 6 spindles
Gauge 360 mm
Mechanical speed Up to 1200 m/min（depending on process parameters）
Installed power 300 W per spindle
Power consumption ∽160 W per spindle
Package shape Freely programmable
Take-up package diameter Up to 260 mm
Supply package diameter Up to 280 mm
Suitable yarns Stretch yarn, cotton, pure silk, polyester yarn, DTY, FDY, viscose yarn, etc.
Layout Single sided
Min./Max./ number of spindles 6/96 spindles
Drive Individual drive per spindle
Take-up tubes Tube bobbin or conical cone 3°30'，max. length 290 mm，min. inner diameter 39 mm, min. outer diameter 43 mm，max. diameter 110 mm
