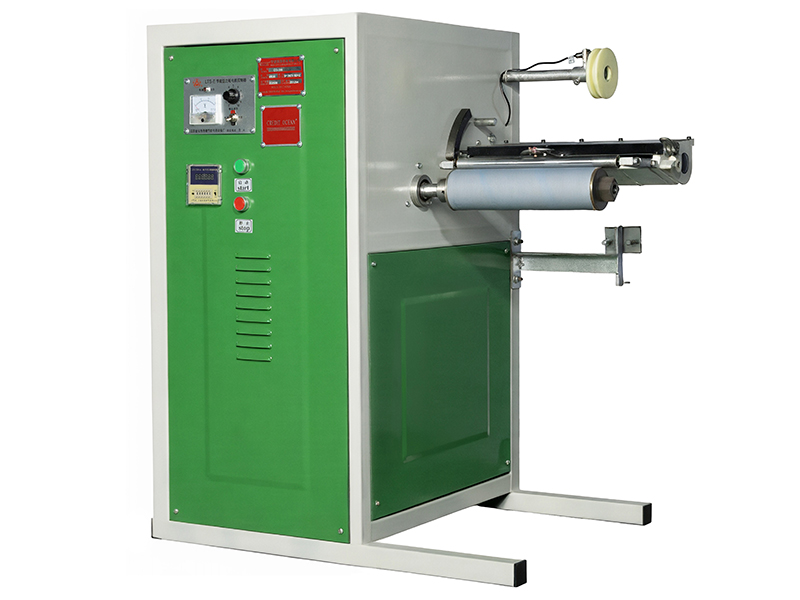

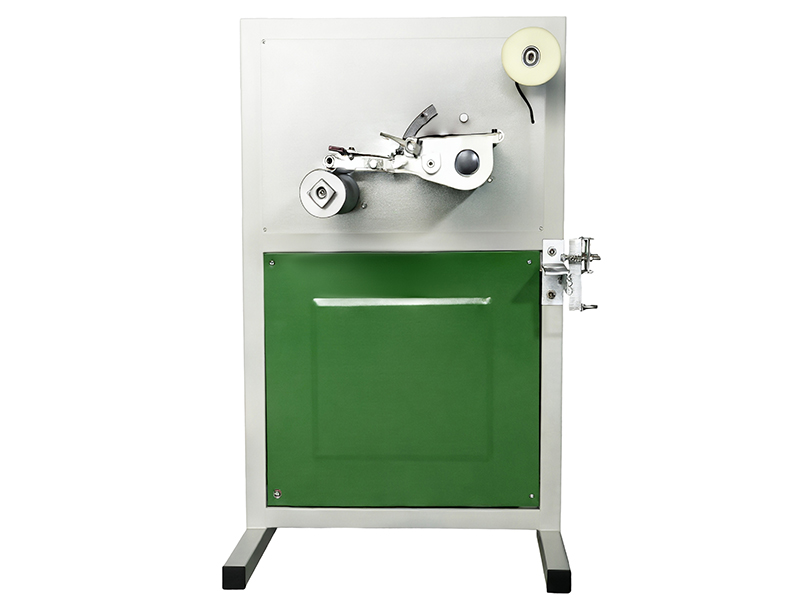

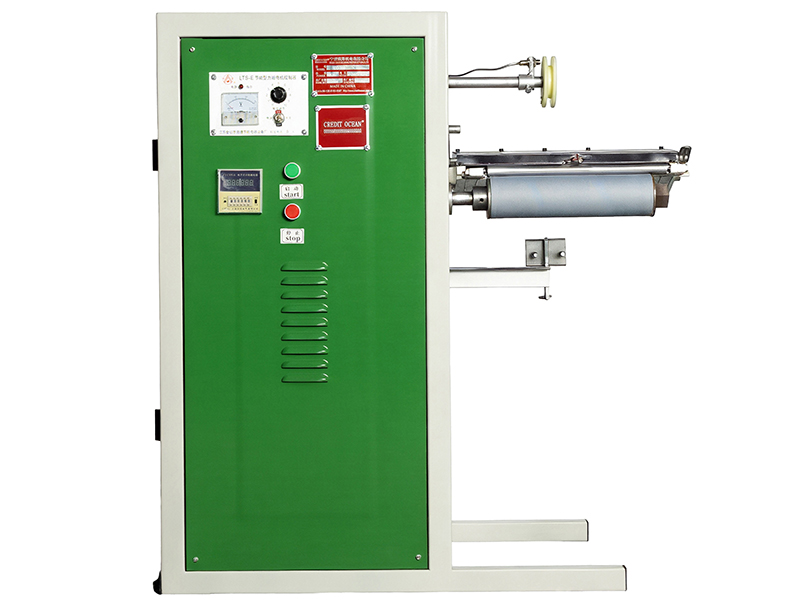

Spooling Machine
Spooling machine is widely used for winding and packaging continuous fiber materials such as fibrillated film, synthetic fibers, cotton, and hemp. It can produce either conical (pagoda-shaped) or cylindrical packages according to user requirements. The finished products are tightly and neatly wound, with flat and even ends, ensuring smooth operation in subsequent processing.
This spooling machine features a simple structure, easy operation, and minimal wear parts. It is equipped with a stepless speed control system with adjustable tension. Based on the diameter of the yarn or cord, the winding density can be adjusted as required to achieve optimal winding performance.
Parameters
| Model | |||
| Take-up spool size (mm) | Ø250 × H250 | Ø300 × H250 | Ø400 × H250 |
| Rope range (mm) | 1–5 | 1–5 | 1–5 |
| Motor torque (N·m) | 2.5 | 4 | 4 |
| Dimensions (L×W×H) (cm) | 60 × 80 × 100 | 65 × 80 × 100 | 65 × 80 × 100 |
| Weight (kg) | 100 | 100 | 100 |
