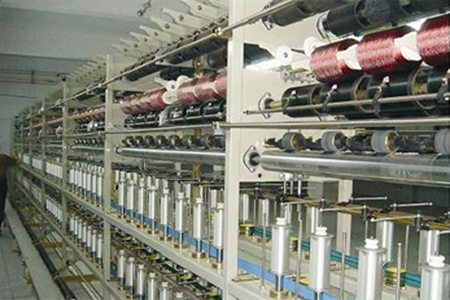

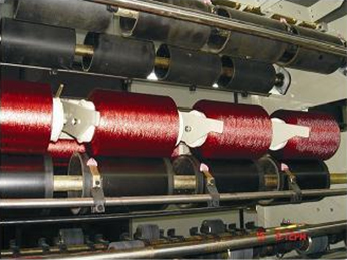

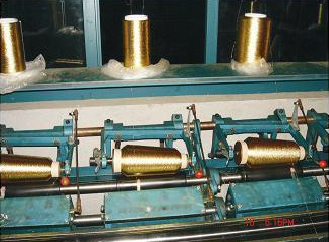

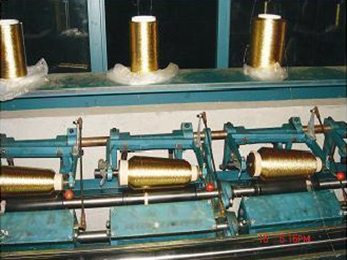

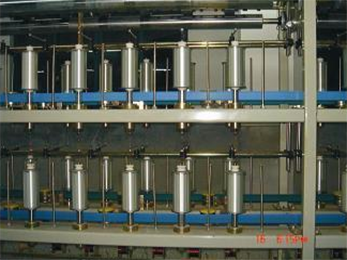

The metallic yarn covering machine is exclusively used in both single covering and double covering of metallic yarns and special yarns in various specifications.
This machine is controlled by frequency converter and servo motor, which can more precisely control the forming and quality of yarns, and simultaneously reduce energy consumption.
|Production Heads||256 In Single Covering|
|128 In Double Covering|
|Number Of Spindles||32 Spindles/Sect. X 8sect|
|Mechanical Spindle Speed||15000-17000r.P.M|
|Twist Per Meter Tpm||From 150 To 3300|
|Aluminum Bobbin(Mm)||5"1/2 X 68 Flange-Bore 30 |
5"1/2 X 76 Flange-Bore 30
5"1/2 X 84 Flange-Bore 30
|Installed Power (Kw)||7.5+11|
|Twist Direction||S Or Z|
|Forming Mode||Mechanical Forming|
|Spindle Belt Length||31200mm|
