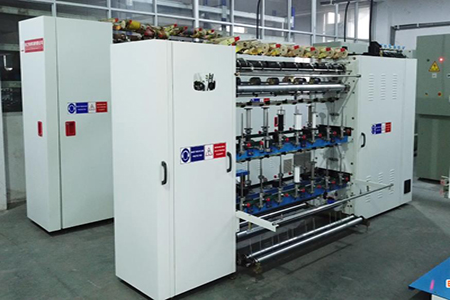

Coventional Covering Machine

Coventional Covering Machine

The machine is widely applied in the covering of spandex or rubber. We offer the most suitable device with configurations that have been modified according to your material requirements.

The key parts like bearings and tangential belts of this covering machine are all provided by top suppliers in the industry to ensure good durability and resistance to wear, tear, and fracture.

Parameters
Production Heads 160 In Single Covering
Production Heads 80 In Double Covering
Number Of Spindles 32 Spindles/ Sect. X 5sect.
Spindles Gauge 200mm
Mechanical Spindles Speed 15000-17000 R.P.M
Twist Per Meter TPM From 200 To 3500
Spools 5"1/2 X 68 Flange-Bore 30
5"1/2 X 76 Flange-Bore 30
5"1/2 X 84 Flange-Bore 30
Spandex Stretch From 1.5 To 6.0
Installed Power Kw 5.5+7.5 Or 7.5+11
Twist Direction S/Z
Forming Mode Mechanical Forming
Take-Up Length 160mm
Spindle Belt Length 20200mm
Spandex Feeder Choose According to requirements
