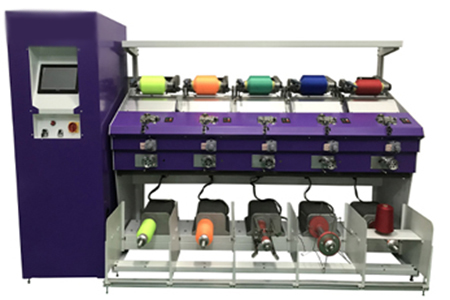

CO-60A Precise Winding Machine (Cone to Cone, Hank/Waff/Dyetube to cone)

CO-60A Precise Winding Machine (Cone to Cone, Hank/Waff/Dyetube to cone)

The automatic precision winding machine features an auto doffing system and winds yarn from cone to cone with individual control per spindle. It enables outstanding efficiency, making it a popular choice for companies looking to minimize operating costs.

Features
  • Equipped with an electronic yarn guide with precision crossing angle, this winding machine can wind perfect yarn without uncontrolled displacement.
  • The length of yarns is precisely controlled to reduce material waste during winding.
  • Equipped with a high capacity storage unit for reliable and rapid doffing.
  • Equipped with a device that can transmit a take-up bobbin to a designated position, reducing the labor cost required for transportation.
  • It can be controlled in single side and single spindle, to prevent loss in case of machine failure.
Parameters
Layout and drive Single section and single side, individual drive per spindle
Number of spindles per section 5 spindles
Dimensions of controller 805 mm×725 mm×1530 mm
Max. mechanical speed 1200 m/min
Max. processing speed 1000 m/min
Dimensions of complete machine 21,950 mm×945 mm×1,667 mm
Suitable yarns Cotton, pure silk, rayon, FDY, DTy
Traverse length 50-250 mm（stepless adjustable）
Theoretical yield of a single spindle in 24 hours Linear speed×dtex×60×24÷10000／1000
Yarn count range Cotton 5-120 dtex，chemical filament yarns 12 dtex-165 dtex
Installed power 360 W/spindle
Number of sections 10 sections（50 spindles in total）
Type of winding Digital or Precision parallel winding
