CO-50J Precision Rewinding Machine (Dye Packaging Winding, Hank to Cone)

CO-50 Precision Rewinding Machine (Dye Packaging Winding, Dye Tube to Cone)

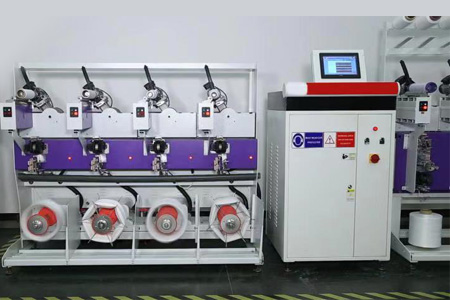

This precision rewinding machine is built to wind yarn from the hank to the cone after the dyeing process. Yarn winding is controlled by a constant tension system in order to work with bobbins in a variety of shapes and sizes.

The yarn winding machine is equipped with an online tensioner to control the yarn feeding speed with the desired yarn tension. This ensures the entire cone is wound with constant tension from beginning to end. The precision winding machine has a maximum operating speed of 1200m/min. The actual speed will be determined by the yarn type.

  • CO-50J Precision Rewinding Machine (Dye Packaging Winding, Hank to Cone)
  • CO-50J Precision Rewinding Machine (Dye Packaging Winding, Hank to Cone)
  • CO-50J Precision Rewinding Machine (Dye Packaging Winding, Hank to Cone)
  • CO-50J Precision Rewinding Machine (Dye Packaging Winding, Hank to Cone)
Parameters
Traverse length 25-250 m, freely adjustable
Package weight Up to 5 kg
Yarn count range 10d-3000d
Number of spindles per section 4 spindles
Gauge 550 mm
Mechanical speed Up to 1200 m/min(usually operating at 800-900 m/min)
Installed power Winding motor 180 W,traversing motor 50 W, oiling motor 5 W, hanking motor 300 W,total power 535 W/spindle
Power consumption ∽250W per spindle
Package shape Freely programmable
Take-up package diameter Up to 260 mm
Suitable yarns Hank, cone
Layout Single sided
Min./Max. number of spindles 4/64 spindles
Drive Individual drive per spindle
