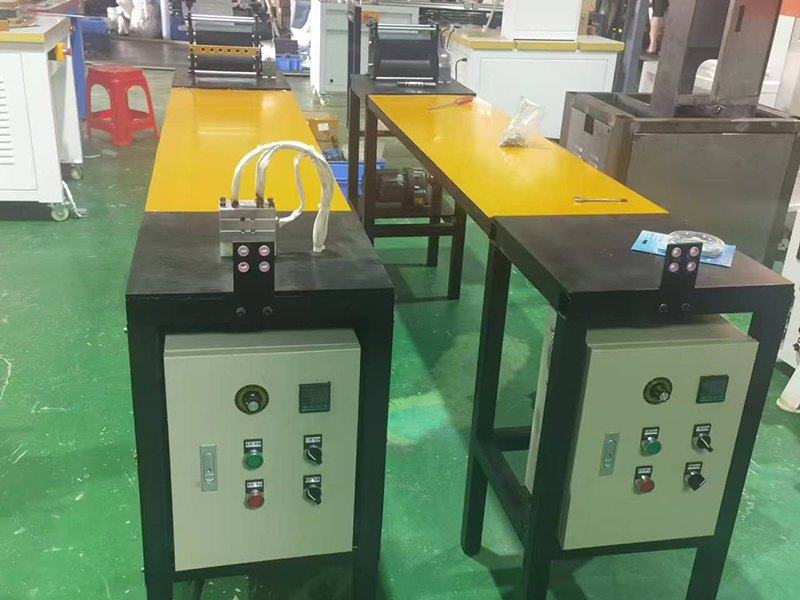

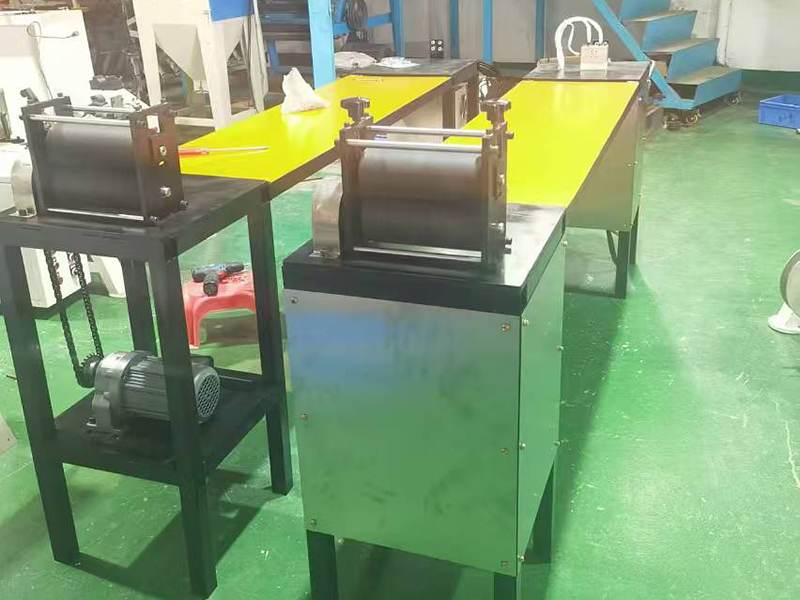

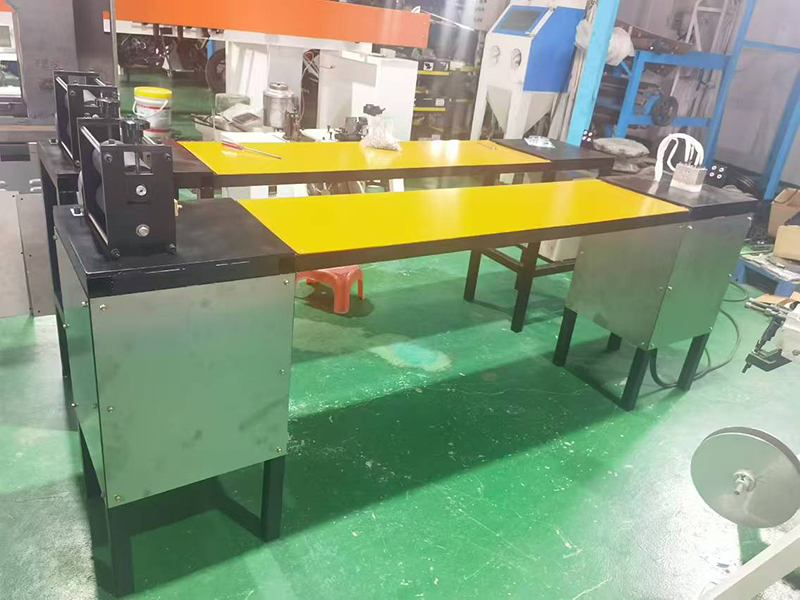

Rope Waxing Machine

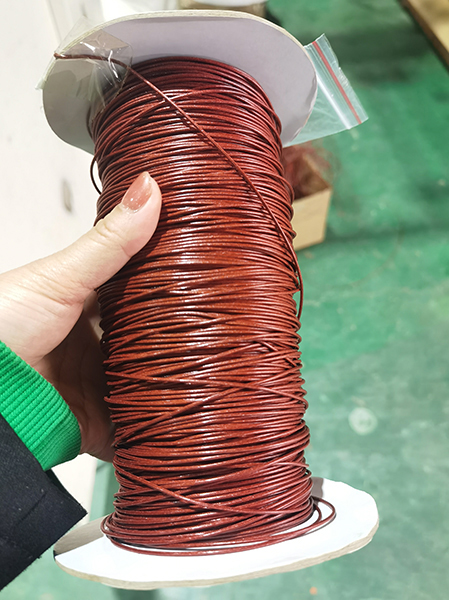

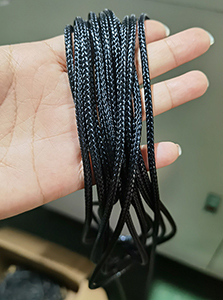

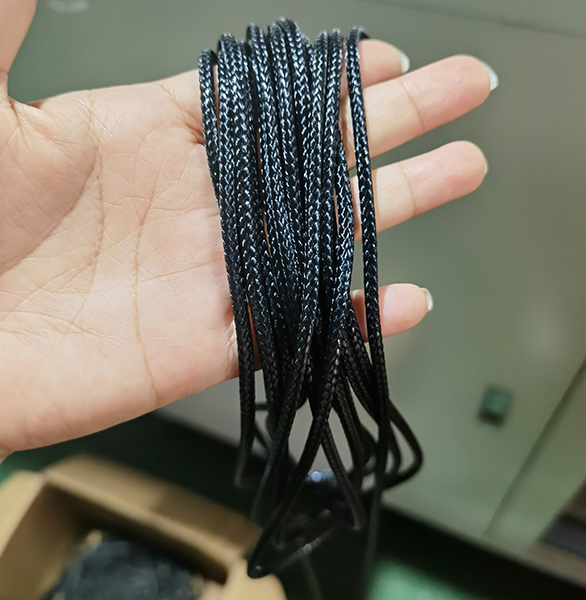

This rope waxing machine is designed for waxing and polishing cords. It is widely used in the production of shoelaces, hangtag strings, and other cord-based products. By improving the appearance, quality, and durability of cords, it meets the requirements for high-quality products.

Features

During the waxing and polishing process, wax is evenly applied to the cord surface, resulting in a smoother, shinier finish while improving wear resistance and durability.
Equipped with an automatic temperature control system that adjusts heating elements based on the set temperature, preventing overheating and ensuring safe operation.
Key parameters such as heating temperature and waxing speed can be independently controlled, allowing users to adjust the operation according to specific production requirements and achieve precise results.

Parameters

Motor: 750W

Heating power: 1250W

Power supply: 50Hz/60Hz (380V / 220V)

Output: 16 m/min (4 cords at a time)

Machine size: 2300 × 400 × 800 mm

Packing size: 500 × 410 × 1800 mm

Gross weight: 140 kg

Note: Suitable for polyester filament and polypropylene. For other materials, samples can be sent for testing.
