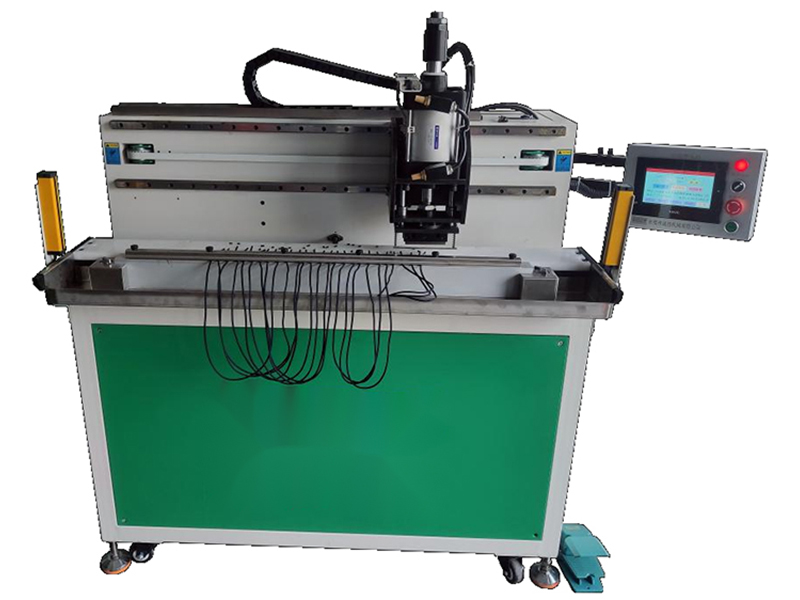

Silicone Aglet Cutting Machine

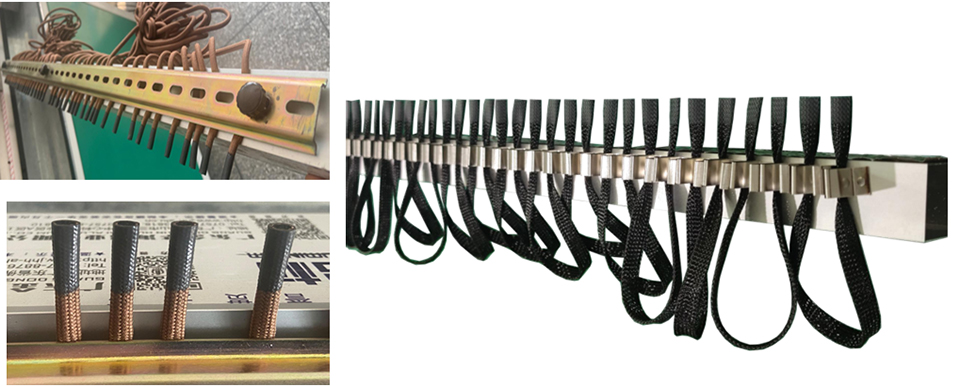

Silicone aglet cutting machine is mainly used for cutting silicone or water-based pu tips on cords or webbing.
Features
- Features a brush system to smooth rope ends before cutting and automatically collects cutting waste.
- Equipped with single-line laser positioning for fast and precise cutting.
- Delivers high-speed operation with clean cutting edges.
- Safety grating protection system automatically stops the machine if intrusion into the operating area is detected; operation resumes after restart.
Parameters
| Model | CT-Q890DS |
| Dimensions | 1350 (L) × 760 (W) × 1500 (H) mm |
| Max. cutting length | 890 mm |
| Drive mode | Electric & pneumatic |
| Air pressure | 0.5–0.7 MPa |
| Total power | 2 kW |
| Power supply | 220V / 50Hz |
| Net weight | 240 kg |
