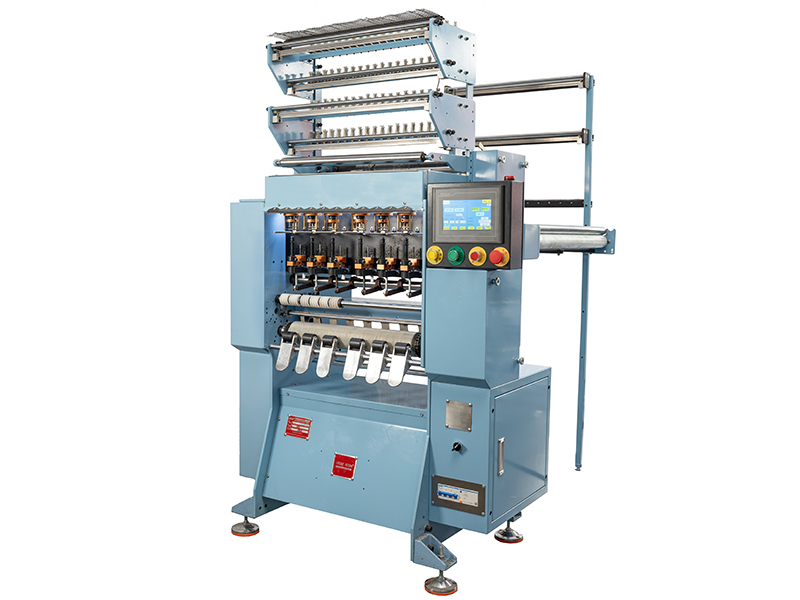

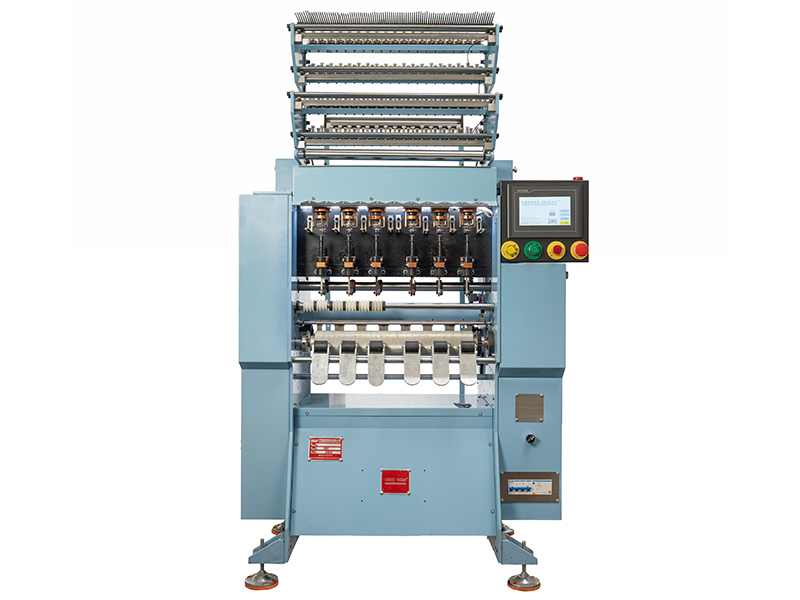

6-Head Cord Knitting Machine

6-Head Cord Knitting Machine
6-Head Cord Knitting Machine 6-Head Cord Knitting Machine
Application

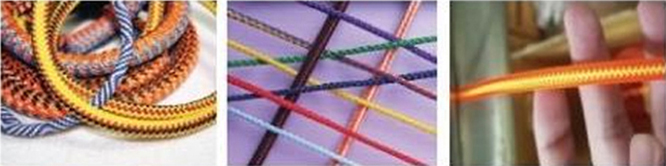

6-head cord knitting machine can produce various types of cords, including:

  • Shoelaces
  • Drawstrings
  • Zipper cords
  • Core-spun cords
  • Decorative cords
  • Blinds cords
  • Hammock cords
  • 6-Head Cord Knitting Machine
Features

The specially designed structure allows easy adjustment and ensures high-speed, low-noise operation. It can produce both core-spun cords and hollow cords.

  • 6-Head Cord Knitting Machine
  • 6-Head Cord Knitting Machine
  • 6-Head Cord Knitting Machine
  • 6-Head Cord Knitting Machine
  • 6-Head Cord Knitting Machine
Parameters
Specification Machine dimensions: 0.55 m (L) × 1.2 m (W) × 1.7 m (H)
Yarn feeding rack: 2.7 m (L) × 1.05 m (W) × 2.5 m (H)
(Note: The feeding rack must be fully disassembled for transportation and assembled on-site)
Machine packing size: 0.8 m (L) × 1.4 m (W) × 1.9 m (H)
Feeding rack packing size: 3 m (L) × 1.2 m (W) × 0.4 m (H)
Optional devices Creel for 200 bobbins (special configuration) × 1 set
Finished product collector × 1 set
Yarn collecting device × 1 set
Technical data Cylinder gauge: 3 / 4 / 6 / 8 / 10 / 12 / 16 GG
Speed: 800–1500 rpm
Standard equipment & accessories Motors (1.5HP): 4 sets (3.8 kW × 2, 1.5 kW × 2)
Automatic yarn break stop device × 1 set
Elastic yarn feeding roller × 1 set
Inverter × 1 set
Needle cylinders: 6 sets (CK-06), 10 sets (CK-10)
Latch needles: 200 pcs
Droppers: 200 pcs
Tools: 1 set
  Finished product diameter: 1–18 mm
