High Speed Cord Knitting Machine

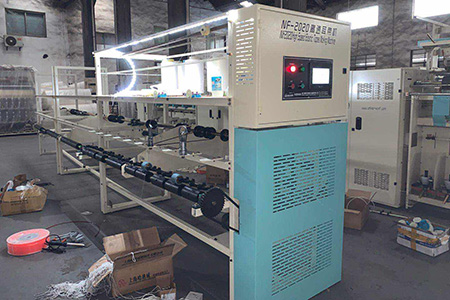

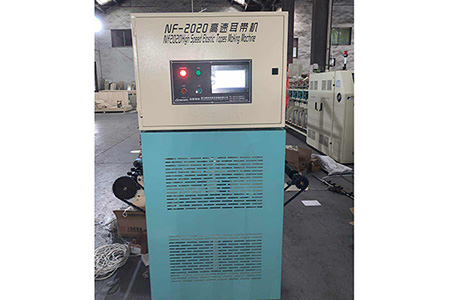

CO-60 high speed cord knitting machine is specially built for producing medical face mask earloop, featuring a higher production capacity compared to other earloop making machines. It adopts double-sided working structure with PLC system for stepless speed regulating. What’s more, this cord knitting machine is designed with LED lamp, so that operator can easily check the working condition of the machine. Once order is placed, fast delivery can be achieved, we are capable of manufacturing 10 machines within 12-15 days.
Specifications
| Model | CO-60 | |
| Hooks | 20x3 | |
| Max. Spindle Speed (r/min) | 4500 | |
| Roller speed (m/min) | 2~2.5 | |
| Cylinder Inside Dia.(mm) | Flat earloop (4mm width) | 5.5 |
| Round earloop (3mm diameter) | 4.3 | |
| Needle Type | Flat earloop (4mm width) | 12# x 16pcs |
| Round earloop (3mm diameter) | 12# x 6pcs | |
| Daily Output (kg) | 180-200 | |
| Main Motor Power (kW) | 2.2 | |
| Gear Motor Power (kW) | 0.5 | |
| Power Supply | 3PH/380V/50HZ | |
